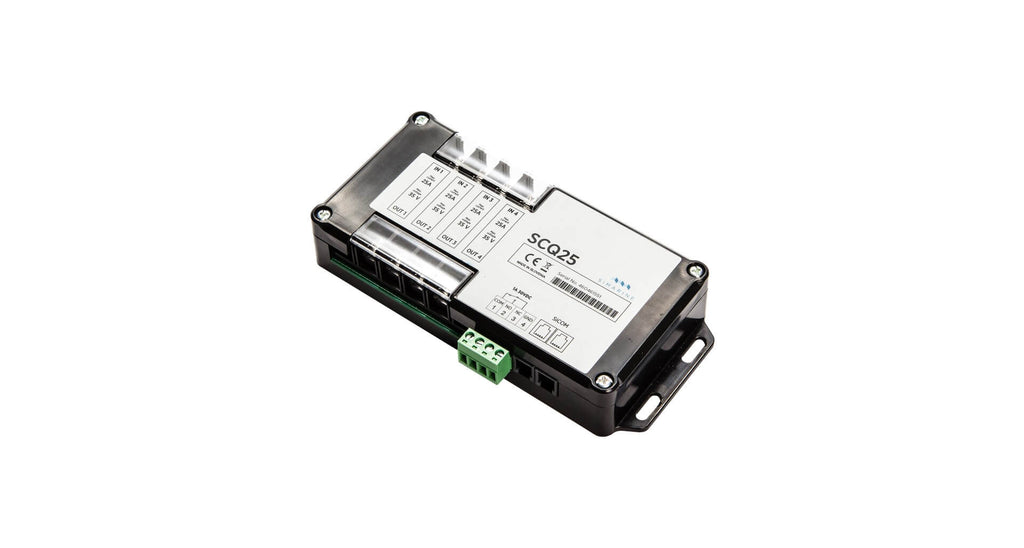

SCQ25 is an innovative shunt module for monitoring individual consumers and generators with;
- 4 x 25A Current Sensors
- For 12v and 24v Systems
Connection Possibilities;
- Up To 4 x Consumer Devices
- Up To 4 x Generators
- 1 x Relay Input
With Monitoring Possibilities;
- Up To 3 X Batteries
- Up To 7 x Tanks
- Up To 4 x Temperatures
Free SIMARINE Android and iOS Apps:

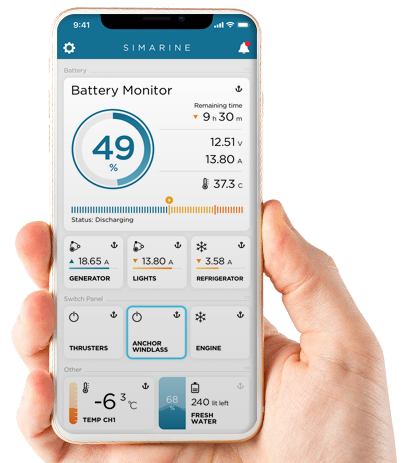

Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.
SPECIFICATIONS
SI-SCQ25
| Model | Simarine Quadro Shunt Module |
|---|---|
| SI-SCQ25 | Quad Shunt 4 x 25A Circuits Module |
| Operating | |
| Power Source Voltage Range | 6-35V |
| Temperature Range | -20 - +70°C |
| Power Consumption at 12V | |
| Operating | 3.5mA |
| Current Measuring Channels | 4 |
| Relay (monostable) | |
| Maximum Operating Current | 1A |
| Maximum Common Input Voltage | 6 – 30V |
| Voltage Inputs | |
| Per Channel | 0.01 – 25 A |
| Resolution | 0.01A |
| Accuracy | ± 0.6 % |
| Sampling Rate | 100ms |
| Maximum Currents | |
| Continuous | 25A |
| Peak Current (<1 min) | 35A |
| Peak Current (<5 sec) | 50A |
| Voltage Drop at 25 A | 35mV |
| Maximum voltage on connections | 35V |
| Connectivity | Up To |
| Current Sensors | 4 |
| Relay Common Input (COM) | 1 |
| Relay Output Normally Open (NO) | 1 |
| Relay Output Normally Closed (NC) | 1 |
| SiCOM RJ9 Sockets | 2 |
| Installation and Dimension | |
| Dimensions (length x width x depth) | 182 x 80 x 32 mm |
| Weight | 230g |
