PRODUCT DETAILS

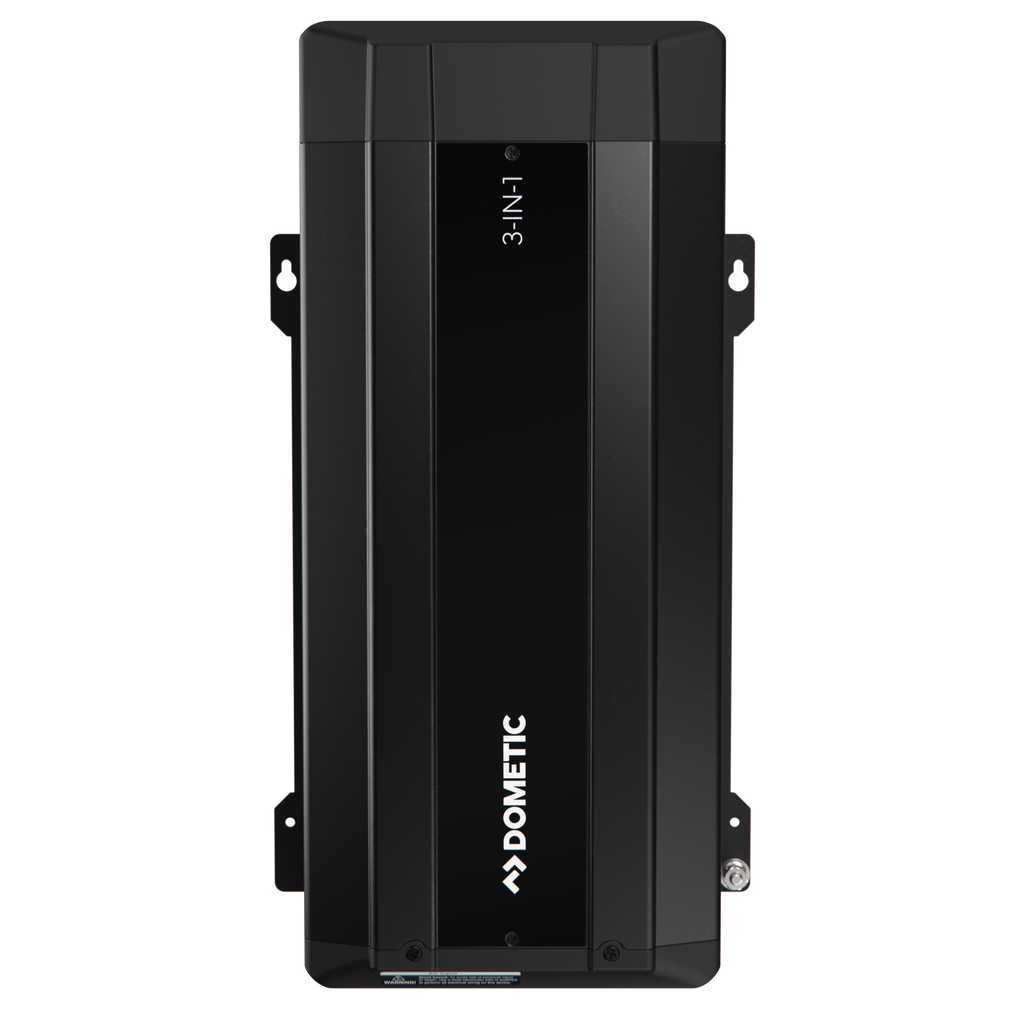

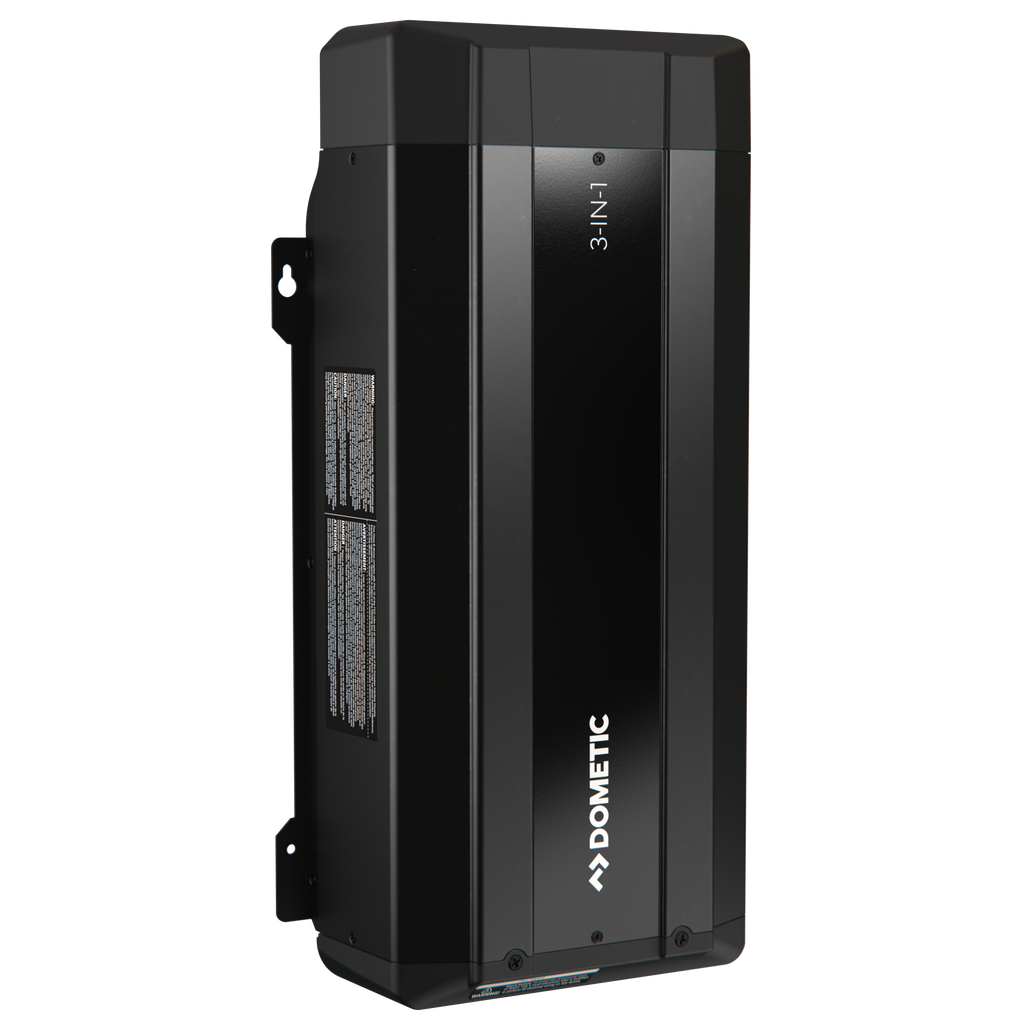

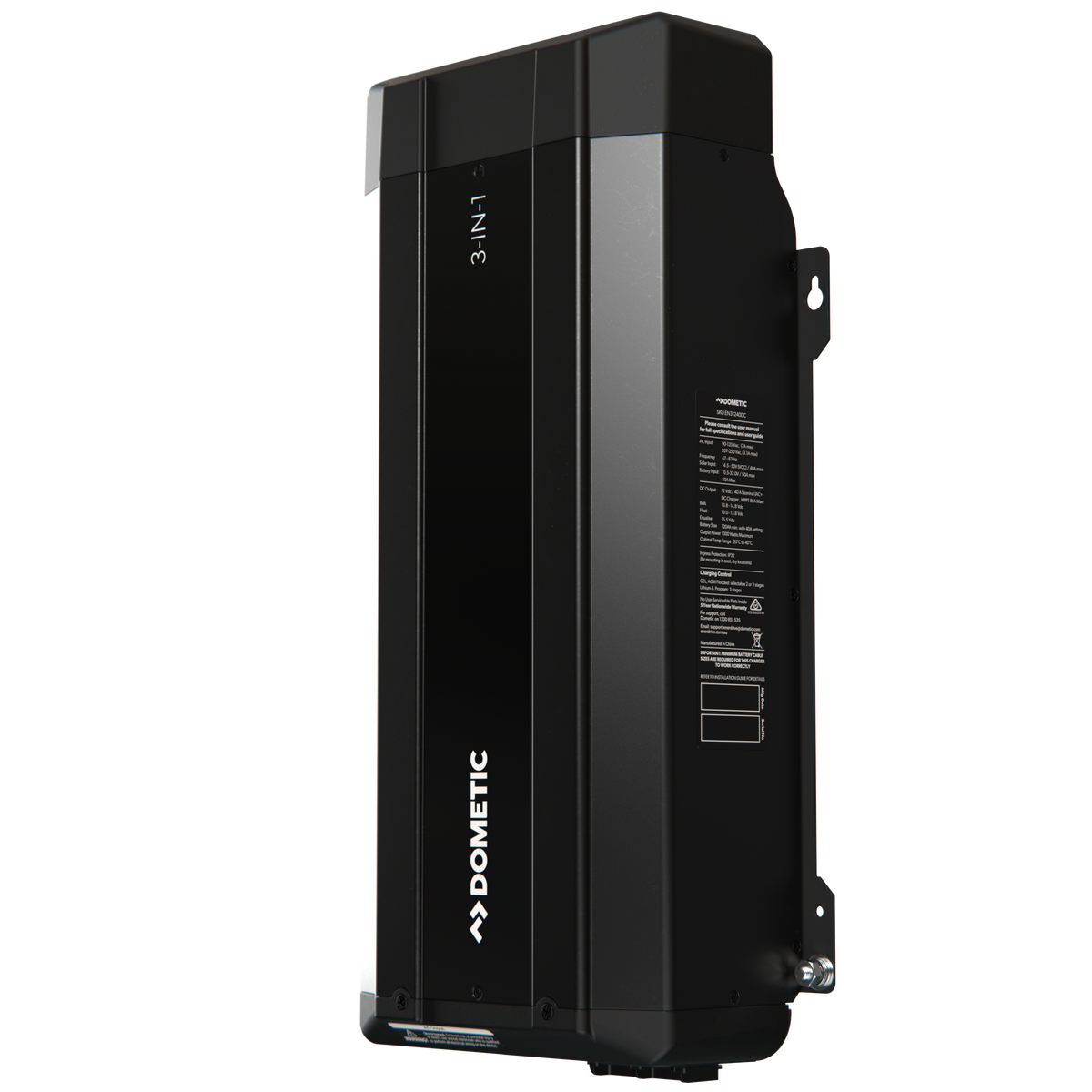

The Dometic 3-IN-1 Battery Charger combines AC, DC-DC, and MPPT solar charging in one compact, high-performance unit. With up to 80A output, it ensures fast, reliable charging from any source. Its innovative design saves space, reduces install time and cabling, and includes a remote display for easy monitoring.
Included with the charger is a fully programmable remote LCD display panel, allowing for easy, remote monitoring and control of your unit.Note: Specifications subject to change without notice.
FEATURES
Dometic 3-IN-1 Battery Charger Features:
- AC Input: Allows you to charge your battery bank from 240V mains power, generator, or while parked in the garage at home.
- DC-DC Charging: Built in DC-DC charger allows charging your house battery from the vehicles Alternator up to 40A.
- MPPT Solar Charging: The integrated MPPT solar regulator delivers up to 40A output from your solar panel, ensuring fast & efficient battery charging.
- Advanced Battery Charging: Charge your battery from a variety of input sources, with the ability to use AC and DC-DC / MPPT simultaneously.
- Fan Cooled: For optimum performance, the 3-IN-1 charger is fan cooled to provide consistent output even in high ambient temperatures.

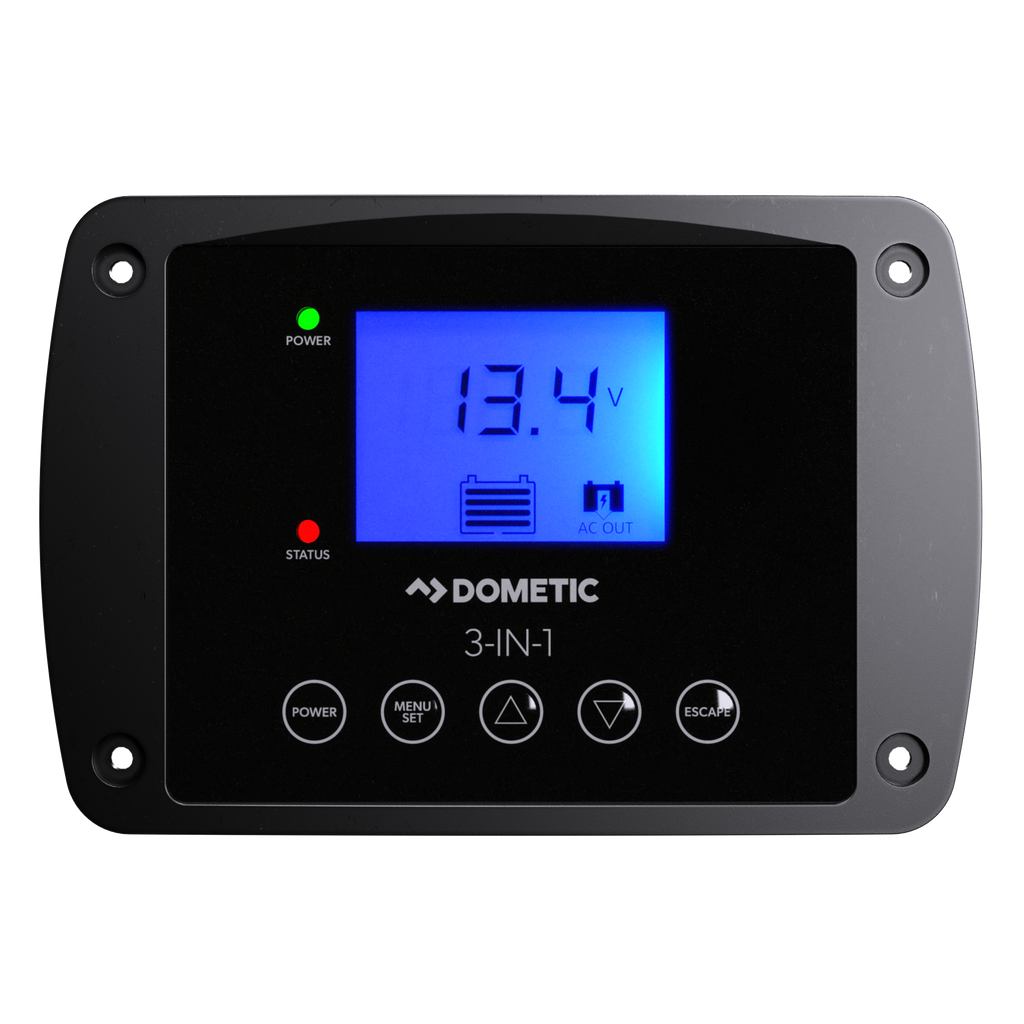

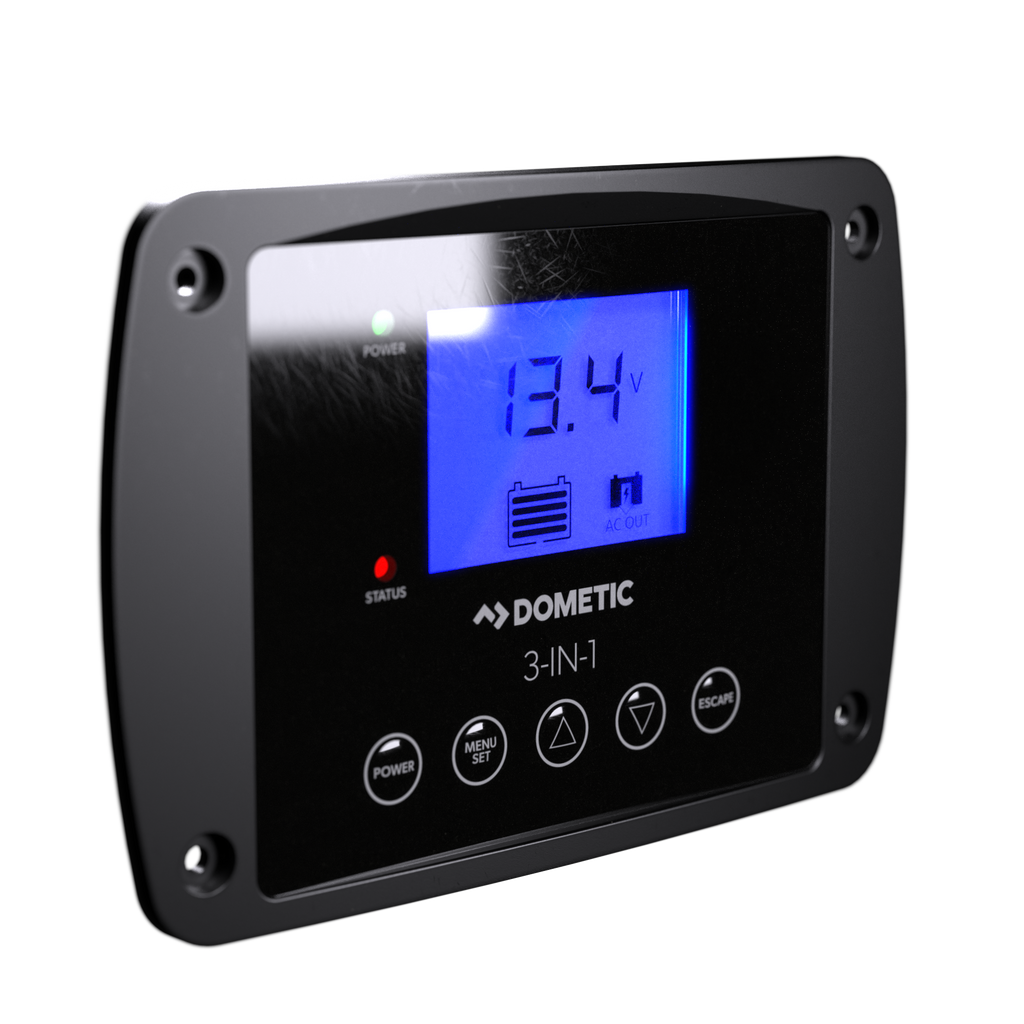

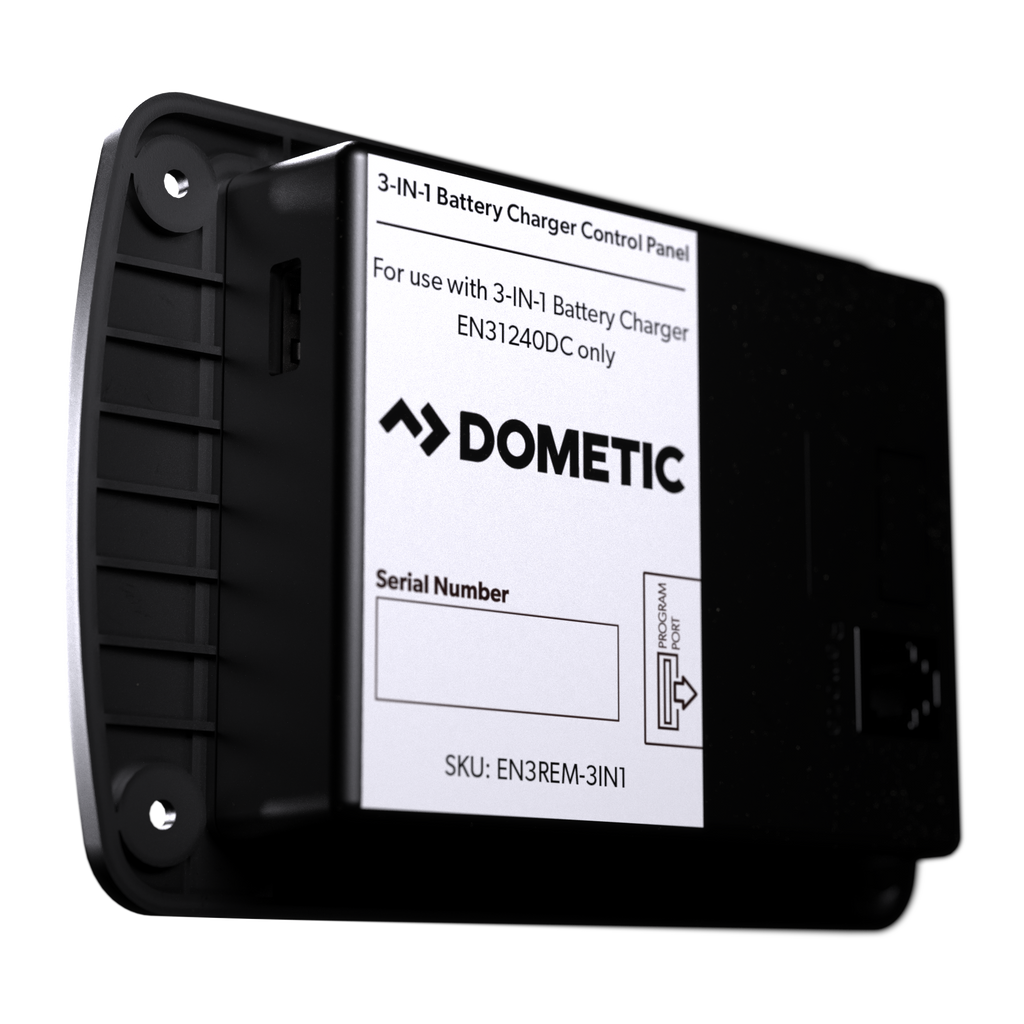

- Remote Display Included: Included with the charger is a fully programmable remote LCD display panel, allowing for easy, remote monitoring and control of your unit.
- 5 Year Warranty from an Australian company renowned for customer support.
SPECIFICATIONS
EN31240DC
3-IN-1 Battery Charger
| 3-In-1 Battery Charger | |
|---|---|
| SKU | EN31240DC |
| CHARGER OUTPUT | |
| Output Current (Maximum) | 80A (AC Charger 40A, DC Charger 40A) |
| OUTPUT VOLTAGE RANGE | |
| Charge | 13.5 - 15.5V |
| Float | 13.0 - 13.8V |
| Equalize | 15.5V (Flooded Battery only) |
| Charging Control | 5 Stages (Test/Bulk/Absorption/Float/Recharge) |
| DC Output Bank | One |
| Selectable Battery Type | Gel, AGM, Lithium, Program, Flooded (with Equalisation) |
| Minimum Battery Size | 120Ah minimum with 40A setting |
| DISPLAY PANEL | |
| AC Input Voltage (Nominal) | 100,120,220,230,240 VAC |
| Digital Display | LED Display with Back Lighting |
| Display Indicators | Voltage, Current, Status, Error Code |
| ENCLOSURE | |

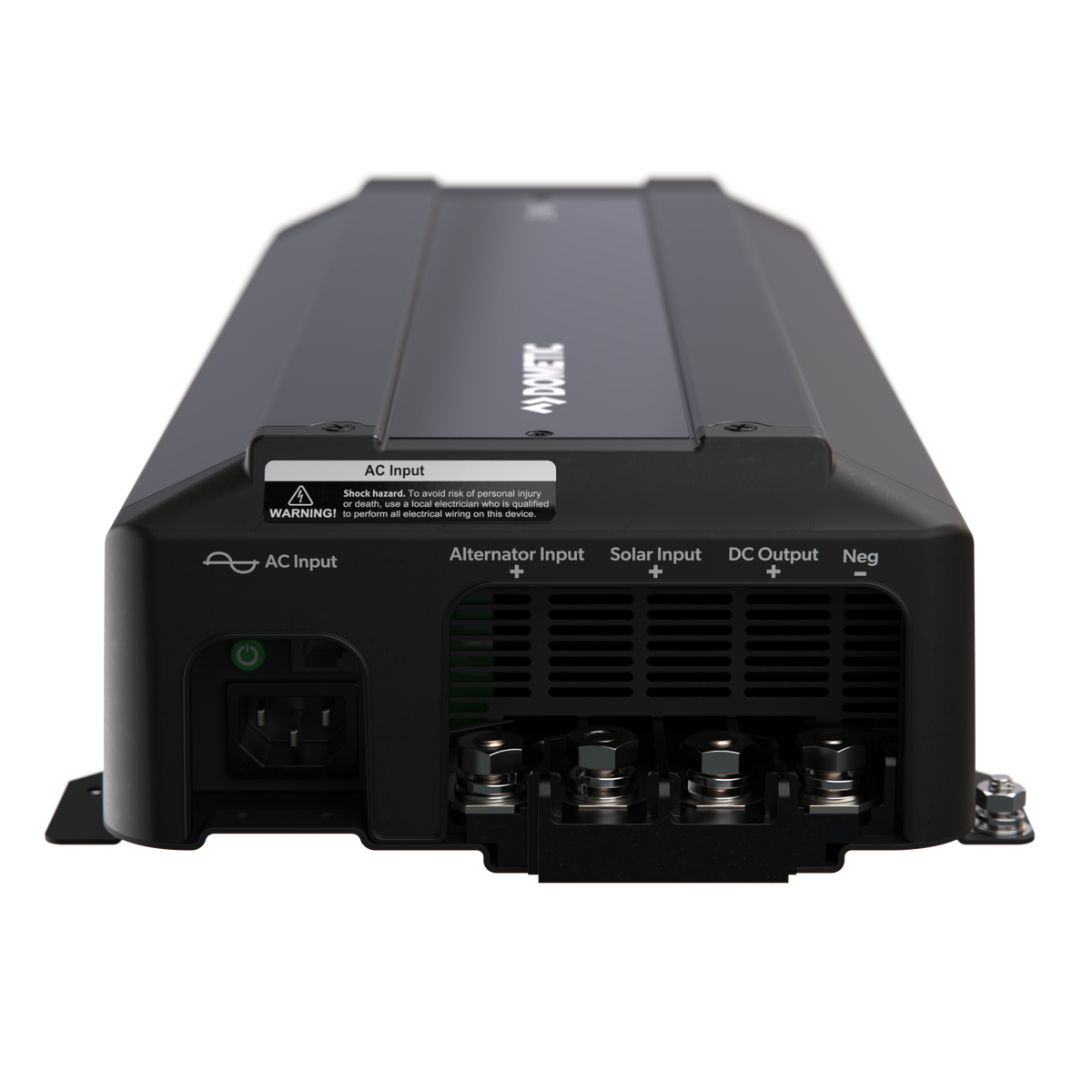

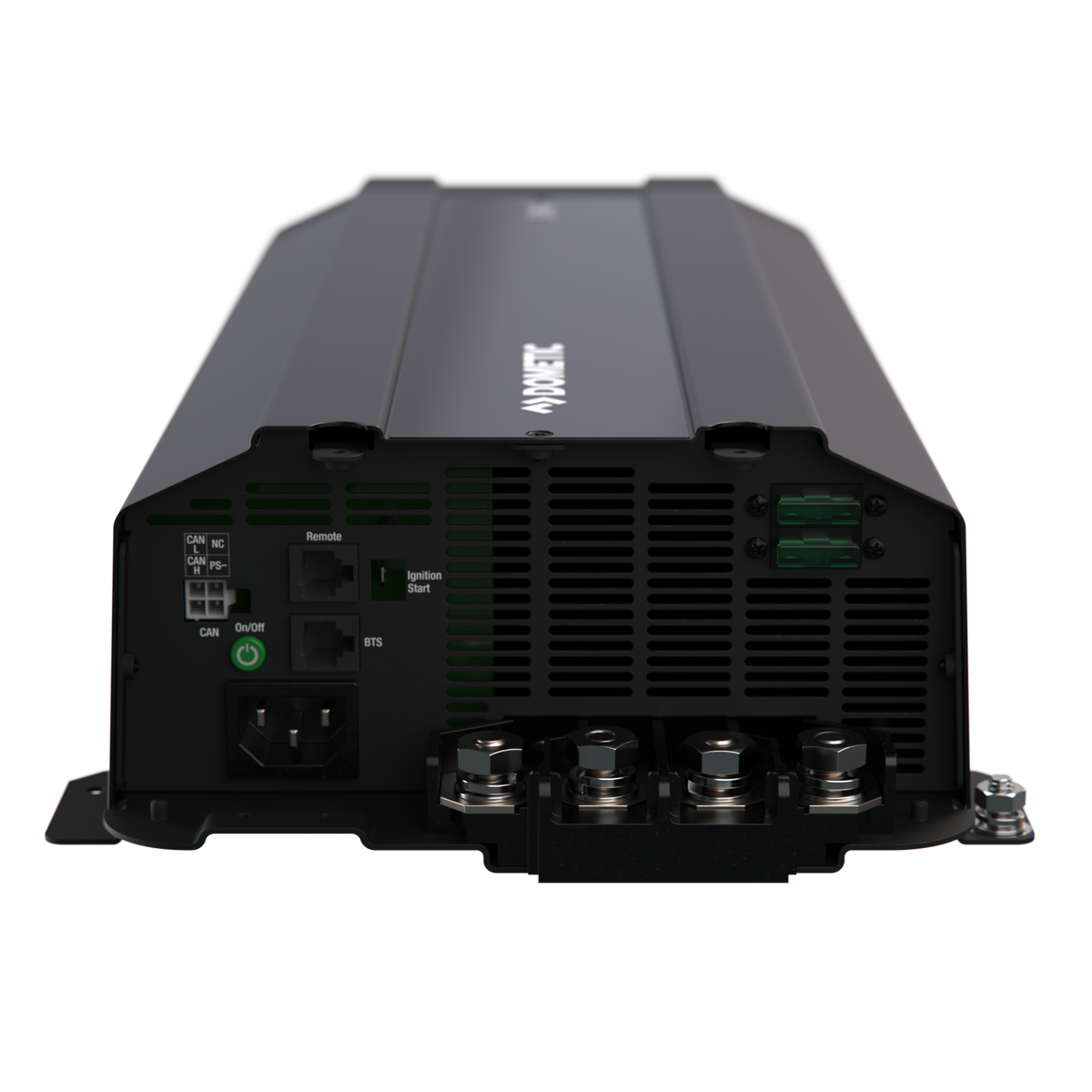

| DC Input Connection | Hardwire |
| DC Output Connection | Hardwire |
| AC Input Connection | IEC Socket |
| ENVIRONMENT & OPERATING TEMPERATURE | |
| Dimensions | 455 x 238 x 104 mm |
| Weight | 3.45kg |
| Storage Range | -40° to 70° C |
| Operating Range | -20° to 60° C |
| Humidity | 5-95%, RH non-condensing |
| Ingress Protection | IP32 - Protected against solid objects over 2.5mm and water sprays up to 15º from vertical |
| DC INPUT (battery/alternator) | |
| DC Input Range | 10.5-32Vdc |
| DC Input Nominal Operation | 13.2V for 12V input charging system 26.4V for 24V input charging system |
| Engine Start Control ON | DC input from Battery/Alternator |
| Engine Start Control OFF | DC input from PV input (if applicable) |
| Input Current | Max 40A |
| Max Solar Input Current | 1000W |
| AC INPUT(Utility/AC Generator) | |
| AC Input Voltage (Nominal) | 100, 120, 220, 230, 240VAC |
| AC Input Operating Range | 90 - 250VAC |
| AC Input Frequency Range | 47 – 63 Hz |
Note: Specifications subject to change without notice.
