PRODUCT DETAILS

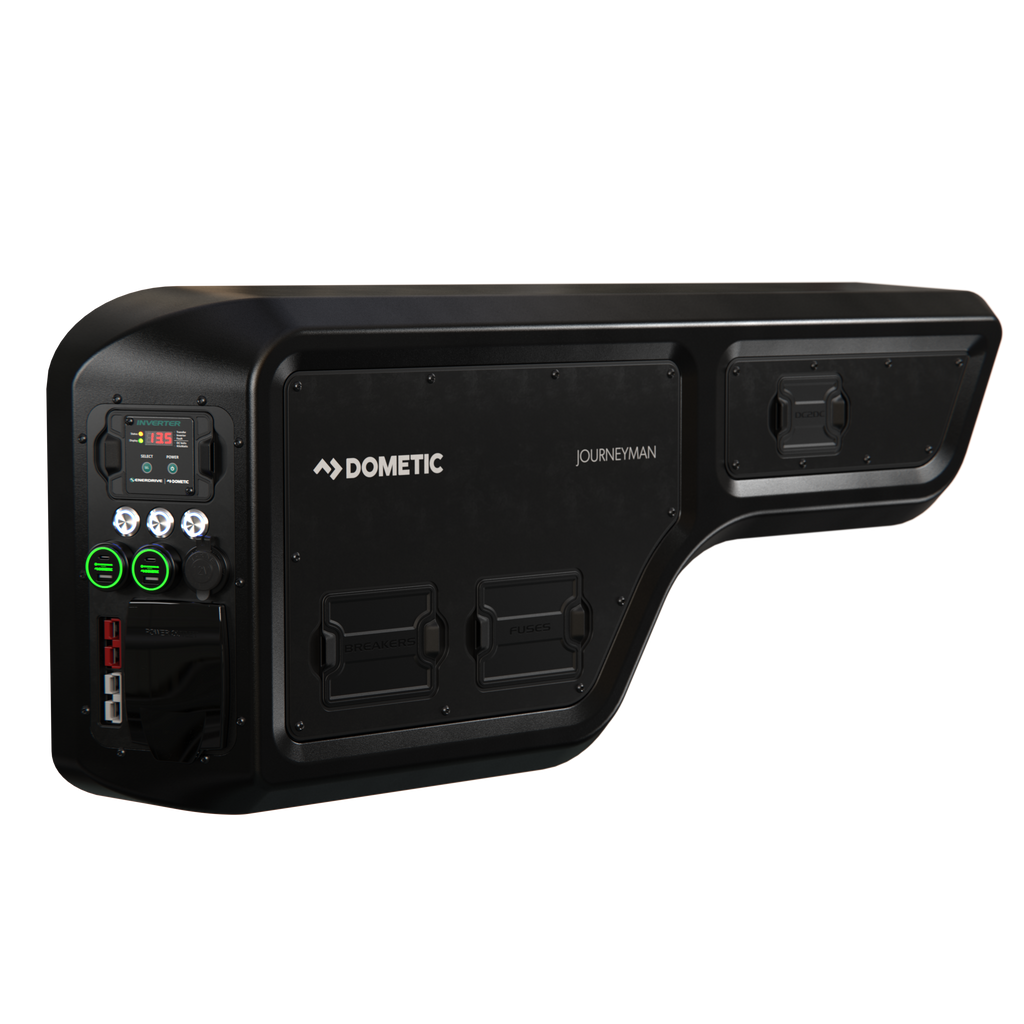

The Dometic Journeyman has been specifically designed and engineered for ute tubs, providing everything you need to keep your gear powered whilst on the road or on the tracks! Featuring a 2000W Inverter and 40A+ DC-DC with MPPT to charge your battery whilst on the go, or from solar. The innovative design saves space and reduces install time and cabling.
- ✓Engineered for ute tubs
- ✓Pre-wired & ready to install
- ✓2000W 230V AC Transfer Inverter Installed (SKU: EN1120S-X)
- ✓40A+ DC-DC Vehicle/Solar Charger Installed (SKU: EN3DC40+)
- ✓12V cigarette socket output
- ✓Twin 100W USB-A & USB-C Outputs
- ✓230V Output
- ✓Designed, Engineered and Assembled in Brisbane, Australia
- ✓5 year warranty
FEATURES
SPECIFICATIONS
4x4 Canopy Power Systems Comparison
| SKU / Items Included | Journeyman | Explorer | Traveller | Lackey | Adventurer | Voyager | Voyager Digital | Salty One x Adventurer | Salty One x Voyager | Commercial Power System |
|---|---|---|---|---|---|---|---|---|---|---|
| SKU | K-JOURNEYMAN-01 | K-EXPLORER-01, K-EXPLORER-02, K-EXPLORER-03 | K-TRAVELLER-01, K-TRAVELLER-02, K-TRAVELLER-03 | K-LACKEY-02 | K-ADVENTURER-01, K-ADVENTURER-02, K-ADVENTURER-03 | K-V3L01, K-V3R01, K-V3T01 | K-V3L02, K-V3R02 | K-ADVENTURER-03-L-S01, K-ADVENTURER-03-R-S01 | K-V3L01-S01, K-V3R01-S01 | K-CPS-01, K-CPS-02 |
| DC Battery Charger | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) | 12V 40A+ DC2DC Battery Charger (Vehicle/Solar) |
| AC Battery Charger | N/A | N/A | 12V 40A AC Battery Charger | N/A | 12V 40A AC Battery Charger | 12V 100A AC Battery Charger | 12V 100A AC Battery Charger | 12V 40A AC Battery Charger | 12V 100A AC Battery Charger | 12V 40A AC Battery Charger |
| Solar Charge Input (Solar ready) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Lithium Battery ready | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | Supplied with B-TEC 12V 200Ah Slimline Lithium Battery |
| Inverter | 2000W AC Transfer Inverter with Inbuilt RCD Safety Switch | N/A | N/A | 2000W AC Transfer Inverter with Inbuilt RCD Safety Switch | 2000W AC Transfer Inverter with Inbuilt RCD Safety Switch | 3000W/100A Inverter-Charger | 3000W/100A Inverter-Charger | 2000W AC Transfer Inverter with Inbuilt RCD Safety Switch | 3000W/100A Inverter-Charger | 2000W Inverter |
| Battery Monitor | ePRO+ Battery Monitor (K-EXPLORER-01) | ePRO+ Battery Monitor (K-TRAVELLER-01) | ePRO+ Battery Monitor (K-ADVENTURER-01) | Simarine PICO | Simarine PICO | Simarine PICO | Simarine PICO | ePRO+ Battery Monitor | ||
| Simarine LCD Touch Screen WiFi Battery Monitoring System | K-EXPLORER-02 K-EXPLORER-03 | K-TRAVELLER-02 K-TRAVELLER-03 | K-ADVENTURER-02 K-ADVENTURER-03 | ✓ | ✓ | ✓ | ✓ | |||
| Pre-Wired Circuit Breakers for Main Power Equipment | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Switches | 3 x 10A Pushbutton with Indicator Light | 4 x Contura Water Resistant Rocker Switches | 4 x Contura Water Resistant Rocker Switches | 4 x Contura Water Resistant Rocker Switches | 4 x Contura Water Resistant Rocker Switches | 6 x Digital Switches - Garmin PowerSwitch™ Digital Switch | 4 x Contura Water Resistant Rocker Switches | 4 x Contura Water Resistant Rocker Switches | ||
| Integrated Light Bar | Sold separately | ✓ | Sold separately | |||||||
| 4 x Customisable Laser-etched Rocker Switches | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| Pre-wired 35mm2 Main Battery Cable Connection with Main DC Fuse | ✓ | ✓ | ||||||||
| Pre-wired 70mm2 Main Battery Cable Connection with Main DC Fuse | ✓ (with 175A Anderson Plug Socket) | ✓ (with 175A Anderson Plug Socket) | ✓ | ✓ | ||||||
| Pre-wired Fridge 50A Anderson Plug connection | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| USB Socket Output | Twin USB-A & C 100W Sockets (x2) | Twin USB-A 2.4A Hi Amp Sockets | Twin USB-A 2.4A Hi Amp Sockets | Twin USB-A 2.4A Hi Amp Sockets (x2) | Twin USB-A 2.4A Hi Amp Sockets | Twin USB-A 2.4A Hi Amp Sockets | 2 x Dual USB-A + USB-C (Max. Output Power 100W) sockets come standard (4 x Outputs) | Dual USB-A + USB-C (Max. Output Power 100W) | Dual USB-A + USB-C (Max. Output Power 100W) | K-CPS-01 = Dual USB-A + USB-C* K-CPS-02 = 1x USB-A, 1x USB-C* *Max. Output Power 100W |
| Cig Socket Output | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | K-CPS-01 = 2 K-CPS-02 = 1 |
| Anderson Plug Socket Output | 1 (Front) | 1 | 1 | 1 | 1 | 1 | ||||
| RCD Protected Powerpoint | 1 | 1 | 1 | 2 | 2 | 1 | 2 | K-CPS-01 = 4 K-CPS-02 = 2 | ||
| Battery Reset Button | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| Individual Load/Charge Module for Simarine (SKU: SI-SCQ50) | K-EXPLORER-03 | K-TRAVELLER-03 | K-ADVENTURER-03 | ✓ | ✓ | ✓ | ✓ | |||
| Water/Fuel Tank monitoring for Simarine - 2x resistance inputs included with SI-SC303 | K-EXPLORER-02 (Included) K-EXPLORER-03 (Included) | K-TRAVELLER-02 (Included) K-TRAVELLER-03 (Included) | K-ADVENTURER-02 (Included) K-ADVENTURER-03 (Included) | Included | Included | Included | Included | |||
| Water/Fuel Tank Module for Simarine. 4x resistance inputs 3x voltage (SKU: SI-ST107) | K-EXPLORER-02 (Optional) K-EXPLORER-03 (Optional) | K-TRAVELLER-02 (Optional) K-TRAVELLER-03 (Optional) | K-ADVENTURER-02 (Optional) K-ADVENTURER-03 (Optional) | Optional | Optional | Optional | Optional | |||
| Low Battery Cutout DC Loads 60A | ✓ | |||||||||
| Load Output 50A Circuit Breaker | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| Ignition Input for Smart Alternator Equipped Vehicles | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. | Yes. Requires connection. |
| 2000W Inverter 200A Input Circuit Breaker | ✓ | ✓ | ✓ | ✓ | ✓ | |||||
| 3000W Inverter 300A Input Circuit Breaker | ✓ | ✓ | ✓ | |||||||
| Dimensions | 911L x 165W x 390H | 455L x 155W x 330H mm | 685L x 155W x 330H mm | 590L x 415W x 135D mm | 630L x 155W x 665H mm | 830W x 700H x 155D mm | 830W x 700H x 155D mm | 630L x 155W x 665H mm | 830W x 700H x 155D mm | K-CPS-01 = 730L x 630W x 250H mm K-CPS-02 = 730H x 630D x 250W mm |
| Weight | 20.0kg | 7.0kg | 10.5kg | 15.0kg | 18.0kg | 28.5kg | 28.5kg | 18.0kg | 28.5kg | 60.0kg |
| Orientation | Left | Left, Right, Top (Ceiling) variants | Left, Right, Top (Ceiling) variants | Left, Right | Left, Right | Left, Right, Top (Ceiling) | Left, Right | Left, Right | Left, Right | K-CPS-01 = Horizontal K-CPS-02 = Upright |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
| (✓) or (SKU) Indicates Standard Fitment |
Mount Kits
Every Journeyman install starts with the right mounting kit. Pick the one that matches your ute.
Journeyman Install Kit - 2022-on Next Gen Ranger/Amarok with Tub Rails
SKU: JM-RAN-AMA-02For 2022-on Ford Ranger Next Gen and VW Amarok utes already fitted with OEM tub rails. The kit includes the brackets that attach the Journeyman directly to your existing rails — no drilling, no guesswork.
Fits: Ranger Wildtrak, Sport and Platinum (and other variants with factory rails). Not sure? Check the side walls of your tub for two pre-installed rails. If they're there, this is your kit.
Journeyman Install Kit - 2022-on Next Gen Ranger/Amarok without Tub Rails
SKU: JM-RAN-AMA-01For 2022-on Ford Ranger Next Gen and VW Amarok utes that didn't come with OEM tub rails. Includes the rail and the brackets, all designed to bolt straight into the factory mounting locations on your tub.
Fits: Ranger XL, XLS and other variants without factory rails. Not sure? If your tub side walls are smooth and have no pre-installed rails, this is your kit.
Journeyman Universal Mounting Kit
SKU: JM-MOUNTKIT-01For every ute that isn't a Next Gen Ranger or Amarok. Includes a mounting plate that fixes to the side wall of your tub, plus the brackets that secure the Journeyman to the plate. The plate replicates the rail spacing of our vehicle-specific kits, so the install looks and feels just as neat.
Fits: Toyota HiLux, Isuzu D-MAX, Mitsubishi Triton, Mazda BT-50, Nissan Navara and other dual cab utes with a factory tub.
Cable Kits
Once the Journeyman is mounted, connect it to your auxiliary battery with one of these pre-made cable kits. Choose the length that suits the distance between your battery and your Journeyman.
Journeyman Battery Cable Kit — 1.5 m
SKU: ENC-JM-70-1500MM70 mm² heavy-gauge cable, 1.5 metres long. Use this kit when your auxiliary battery sits close to the Journeyman in the tub. Includes a 175 A Anderson connector, 8 mm cable lugs and an inline fuse for full circuit protection.
Pick this if: Battery mounted under the Journeyman or against the same cab wall.
Journeyman Battery Cable Kit — 2.6 m
SKU: ENC-JM-70-2600MM70 mm² heavy-gauge cable, 2.6 metres long. Use this kit when your auxiliary battery sits further back in the tub or in a separate battery compartment. Includes a 175 A Anderson connector, 8 mm cable lugs and an inline fuse for full circuit protection.
Pick this if: Battery in the rear of the tub, under the tray, or in a dedicated battery box.
