PRODUCT DETAILS
The ePRO+ Smart Shunt Bundle pairs our most advanced battery monitor with Bluetooth app control, so you can read true state of charge at a glance on the display or from your phone anywhere around camp.
Voltage tells you very little about how much power you actually have left. The ePRO+ puts a precision 600A intelligent shunt in your battery negative and counts every amp-hour in and out, giving you real state of charge, accurate time remaining and live current flow across up to three battery banks. The Bluetooth dongle puts the same data, plus full setup, history and PIN-locked settings, on your iOS or Android device.
Built for systems that have outgrown entry-level monitors: large lithium banks, 24V and 48V setups, dual-bank caravans, boats and commercial vehicles.

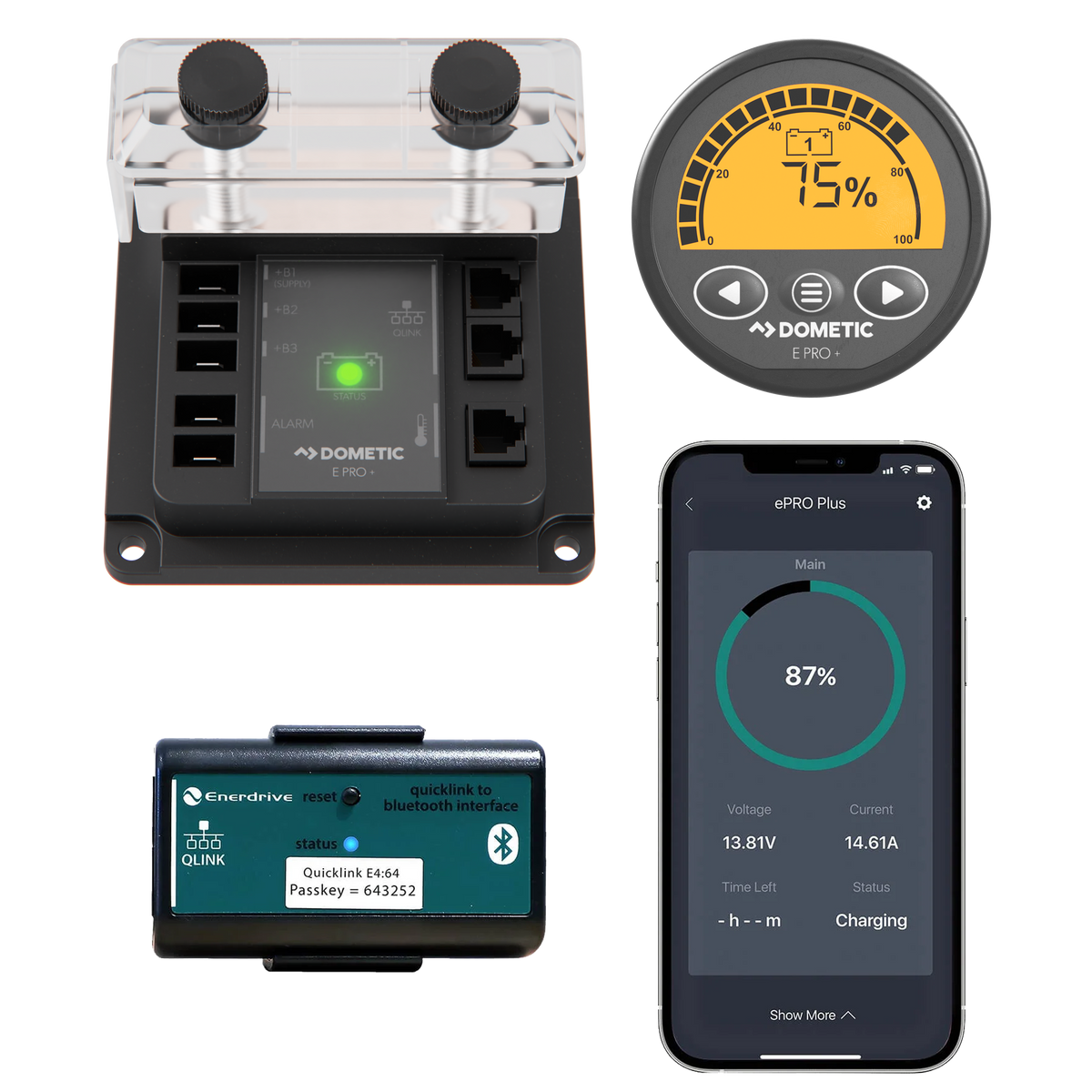

In the bundle

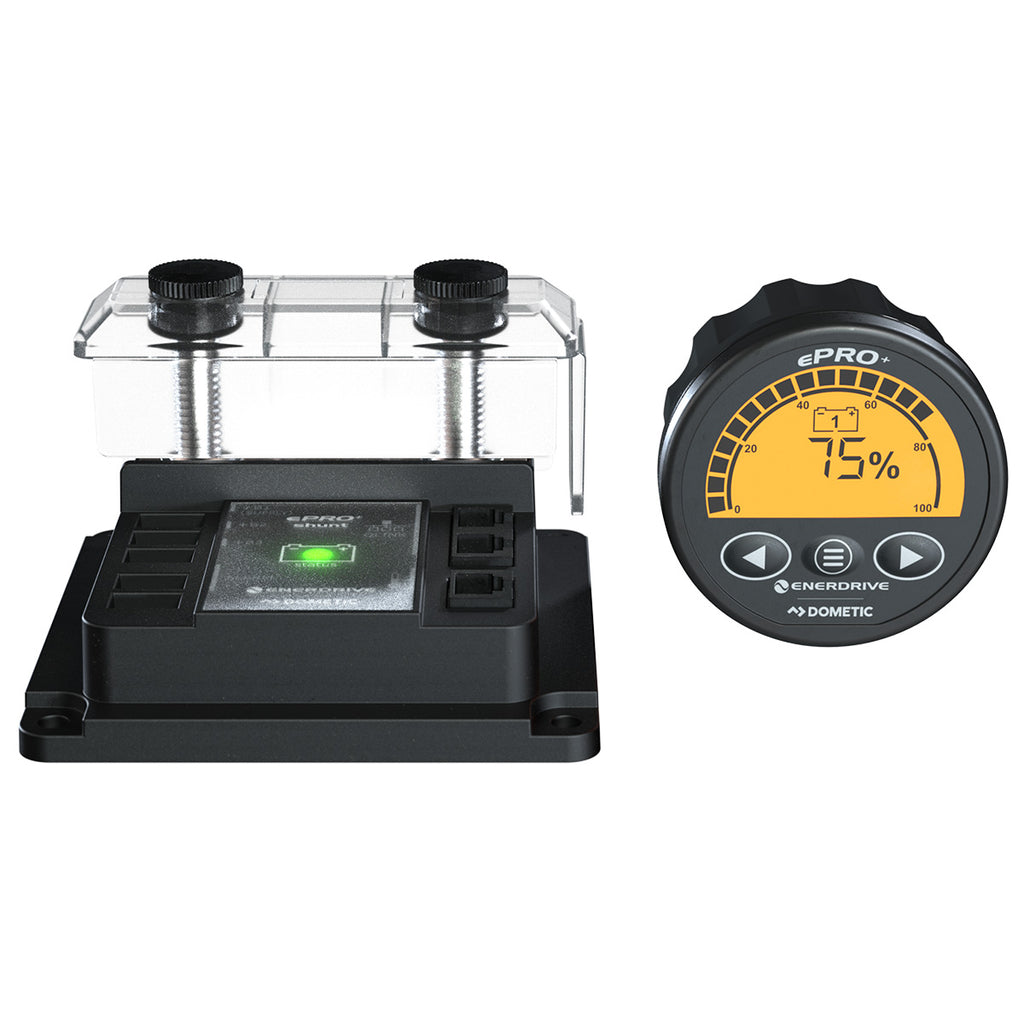

- ePRO+ Battery Monitor (EN55050) – 600A intelligent shunt, control/display unit, fused supply wire and QuickLink cable
- ePRO+ Bluetooth Dongle (EN6092230) – plugs into the shunt's QLINK port with the supplied link cable
Everything needed to connect is in the box. No separate connection kit required.
FEATURES
One monitor, three battery banks
Monitor your house bank plus two more, such as a starter or second house battery. Inputs two and three can instead be set for mid-point voltage (early warning of an unbalanced or failing bank), keyswitch input, setup lock or backlight control.
Headroom for big systems
Measures up to ±600A (500A continuous), suits banks from 10Ah to 10,000Ah and handles 7–70V, so any lead-acid or LiFePO4 system from 12V to 48V is covered.
Precise where it counts
±0.3% voltage and ±0.4% current accuracy, with 0.01A resolution at low loads, so the small overnight draws that quietly flatten batteries actually show up.
Display and app, not one or the other

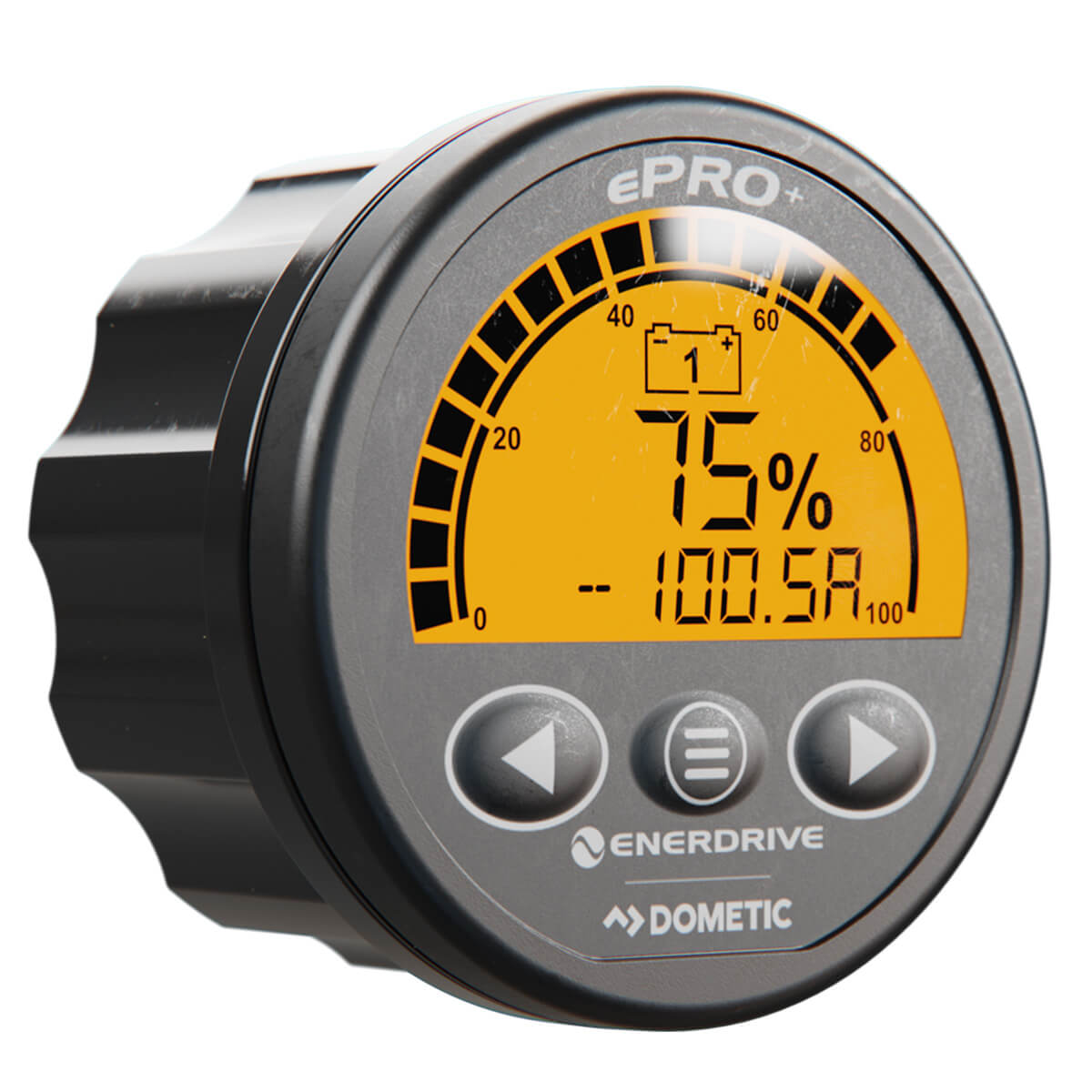

The compact 64mm display has an IP65-rated front panel. The free Enerdrive ePRO app adds live readouts, status and history data, remote configuration, custom naming and PIN-lock on settings.
Controls as well as monitors
A programmable alarm relay can trigger warning lights, buzzers or load-shedding when limits are reached. The optional 2-Channel Alarm Expander (EN5093120) adds two more relays or drives a dual-coil latching contactor for automatic disconnect.
Designed to integrate
The Grid Optimised 100 x 100mm shunt footprint drops straight into Dometic DC Modular systems for a clean, professional install.
5-year warranty
Backed by Dometic and our national dealer and service agent network.
SPECIFICATIONS
| Bundle SKUs | EN55050 + EN6092230 |
| Supply voltage range | 7–70Vdc |
| Battery 2 & 3 input range | 1–70Vdc |
| Current range | −600 to +600A (500A continuous) |
| Battery capacity range | 10–10,000Ah |
| Battery chemistry | Lead-based and lithium (LiFePO4) |
| Voltage accuracy | ±0.3% |
| Current accuracy | ±0.4% |
| Self-consumption (12V / 24V / 48V) | 10mA / 6mA / 5mA |
| Operating temperature | −20 to +50°C |
| Shunt dimensions | 100 x 100mm footprint, 64.5mm high, 290g |
| Display dimensions | Ø64mm front panel, Ø51.5mm body, 36mm deep, 70g |
| Protection | IP20 (display front panel IP65) |
| Connectivity | Bluetooth Low Energy via QLINK dongle |
| App compatibility | iOS 11+ (iPhone 5s and up); Android 7.0+ with Bluetooth Low Energy |
| Standards | CE (EMC Directive 2014/30/EU) incl. EN50498 automotive EMC |
| Warranty | 5 years |
