PRODUCT DETAILS
- Consolidates branch circuits and in-line fuses
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Models available with or without a cover
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
FEATURES
Consolidates branch circuits and in-line fuses
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Tin-plated copper buses and fuse clips
- Accepts ring or spade type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
SPECIFICATIONS
BS-5034B

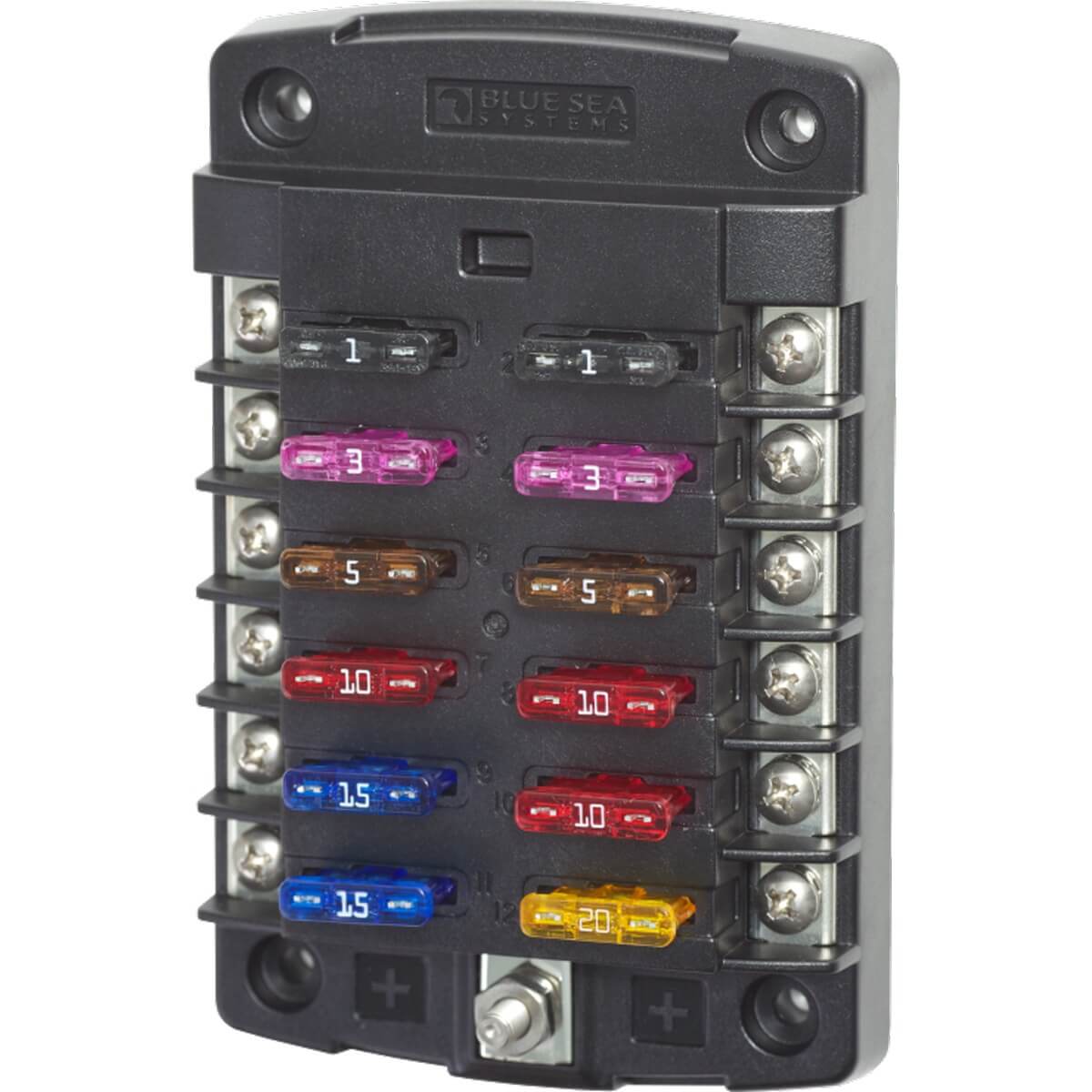

| ST Blade Fuse Block – 12 Circuits | |
|---|---|
| Circuits | 12 |
| Maximum Amperage | 100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N·m) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
| Weight | 0.60lb (0.27 kg) |
