PRODUCT DETAILS
Additional information
| Active Shunt | 300A, 500A |
|---|
FEATURES

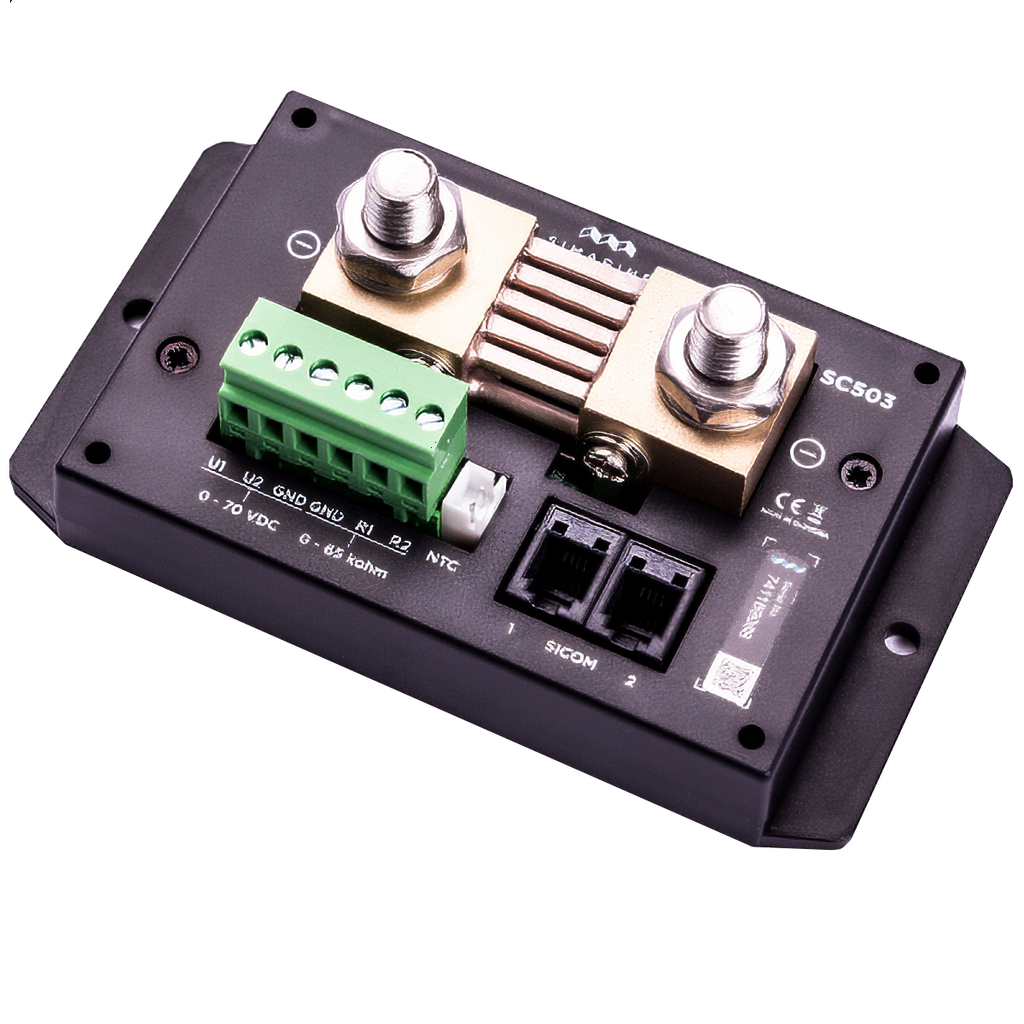

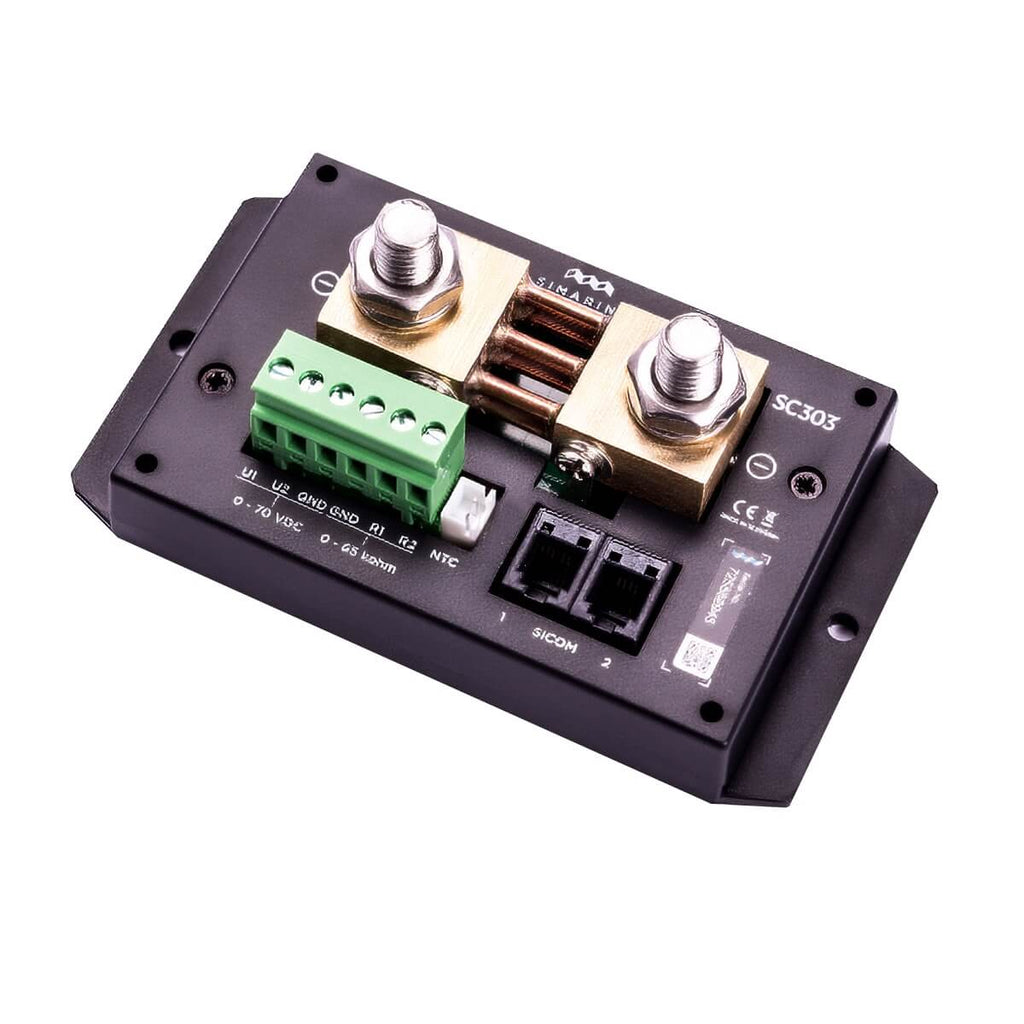

Innovative combination of Shunt and Tank/Temp level module. The SC303 & SC503 are an active combo shunt for PICO battery monitor with;
- 2 x Voltage Inputs
- 2 x Tank Level or Temperature Inputs
- 1 x Socket for Temperature Sensor with JST connector
- 1 x Current Sensor up to 300A (SC303) or 500A (SC503) for up to 75V systems.
It can be used for monitoring current draw of heavy consumers (inverters, bow and stern thrusters, anchor winches) and current generators (shore power chargers and solar panels). Additionally, it allows monitoring tanks for fuel, fresh and grey water.

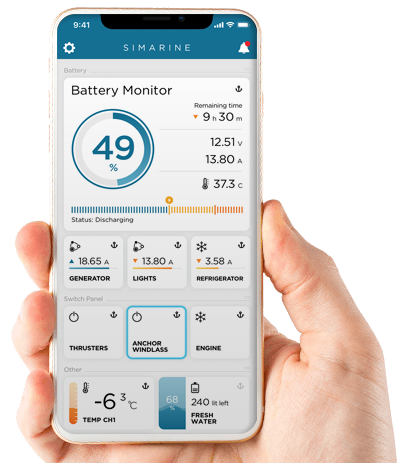

Free SIMARINE Android and iOS Apps:
Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.
SPECIFICATIONS
SI-SC303
Simarine SC303 and SC503 Shunts
| Simarine Combo Quadro Shunt Module | Simarine Combo Quadro Shunt Module | |
|---|---|---|
| SKU | SI-SC303 | SI-SC503 |
| Model | 300A Active Shunt | 500A Active Shunt |
| Voltage Range | 6-35V | 6-35V |
| Temperature Range | -20 - +70°C | -20 - +70°C |
| Power Consumption at 12V | ||
| Operating | 1.2mA | 1.2mA |
| Current Measuring Range | ||
| Per Channel - SC303 | 0.01 - 320A | 0.01 - 320A |
| Per Channel - SC503 | 0.01 - 700A | 0.01 - 700A |
| Accuracy | ± 0,6 % | ± 0,6 % |
| Resolution | 0,01 A | 0,01 A |
| Sampling rate | 100 ms | 100 ms |
| Maximum Current | ||
| Continuous | 300A | 500A |
| Peak current (<1 min) | 700 A | 1000A |
| Peak current (<5 min) | 400 A | 700 A |
| Voltage drop at 300 A | 50 mV | 50 mV |
| Maximum Voltage on Connections | 35V | 35V |
| Voltage Inputs | ||
| Range | 0-75V | 0-75V |
| Resolution | 1mV | 1mV |
| Accuracy | ±0.2% | ±0.2% |
| Sampling Rate | 100ms | 100ms |
| Resistance inputs | ||
| Range | 0 Ohm - 65kOhm | 0 Ohm - 65kOhm |
| Accuracy | ± 3.0% | ± 3.0% |
| Temperature Sensor – NTC 10k | ||
| Range | -15 – +80 °C | -15 – +80 °C |
| Accuracy (-10 – 60 °C, 14 – 140 °F) | ± 3.0% | ± 3.0% |
| Connectivity | Up to | Up to |
| Batteries | 1 | 1 |
| Temperature Sensors | 3 | 3 |
| Voltage and/or Resistance Sensors | 2 | 2 |
| SiCOM RJ9 Sockets | 2 | 2 |
| Installation and Dimension | ||
| Dimensions (length x width x depth) | 120 x 120 x 60 mm | 120 x 120 x 60 mm |
| Battery Connection | M10 bolts | M10 bolts |
