PRODUCT DETAILS
With the changes to the Australian Electrical Standards, ASNZS 4763-2011 Safety of Portable Inverters, coming into effect on the 1st July 2013 and combined with the push from Work Place Health and Safety for RCD Protection for workers, Enerdrive have released our “ready to go” Pure Sine Wave Inverter Kits that will suit everyone’s needs.
FEATURES
With the changes to the Australian Electrical Standards, ASNZS 4763-2011 Safety of Portable Inverters, coming into effect on the 1st July 2013 and combined with the push from Work Place Health and Safety for RCD Protection for workers, Enerdrive Dometic have released our “ready to go” Pure Sine Wave Inverter Kits that will suit everyone’s needs.

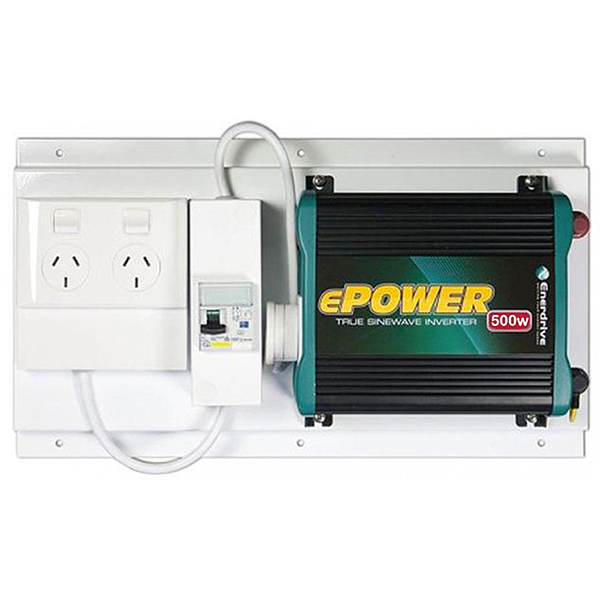

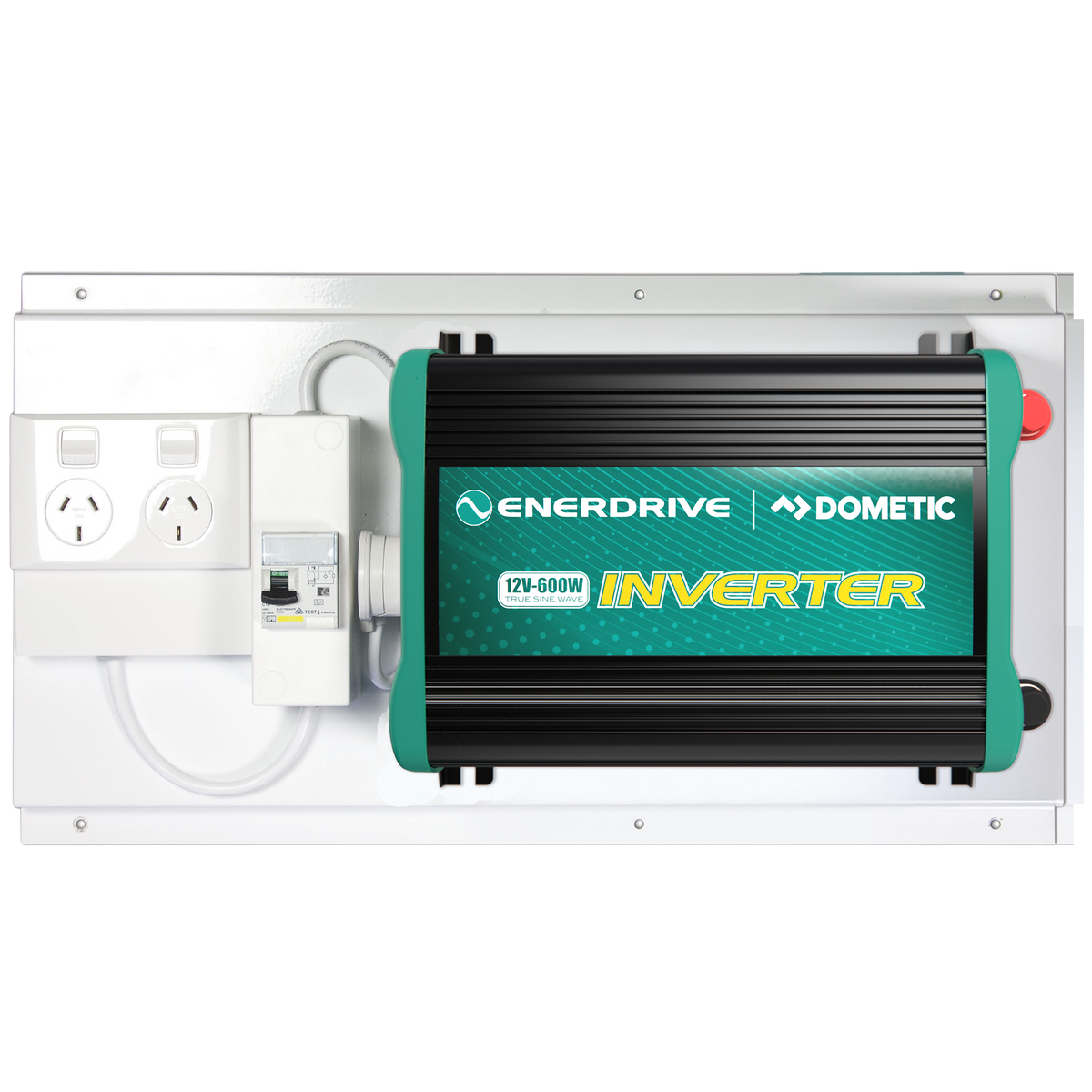

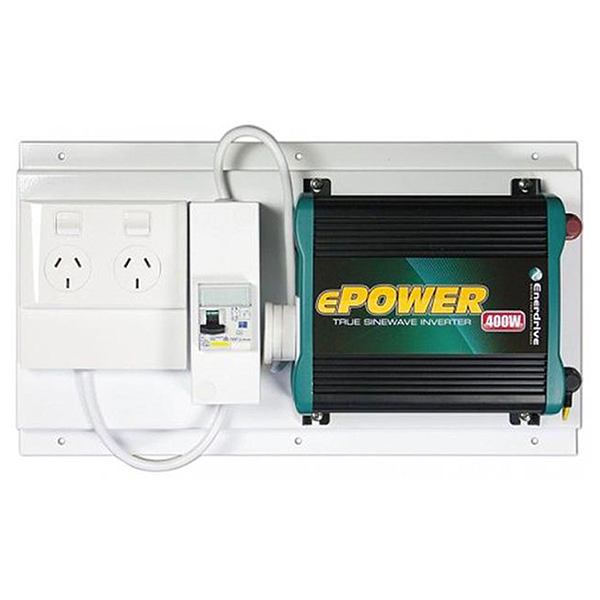

Five popular sizes are available in a ready to go system, 400w, 600w, 1000w and 2000w (12v) and 500w 24v
Think you might like AC power in more than one spot in the Vehicle? Enerdrive have thought of this too. By utilising a clever AC Plug & Play GPO system you can quickly and easily add extra AC power points by just plugging them in. All power points are Double Pole with the system incorporating a Type ‘A’ RCDBO with M.E.N Protection for safety and compliance in all permanently mounted mobile applications.
Also available is the stand alone RCD/GPO arrangement for hardwired Inverters and Combi units like the Prosine, Magnasine and TBS. (190mm High x 178mm Wide).
These Inverter Packages are great for Professional Vehicles such as Telecommunications, Energy, Council, Emergency Vehicles and let’s not forget Recreation Vehicles like Caravans, Motorhomes, Camper Trailers and Marine applications.
“You have Safety Protection at home and now you can have it where ever you go.” Work sites have plenty of hazards such as vehicles, machinery and building materials lying amongst your tools and power leads. These items may be affected or damaged without you knowing and you don’t want to be shocked when you find out. Make sure you are electrically protected and go home safe.
Installation is quick and easy, requiring only 6 mounting screws for the plate and connection of the DC power. Your system is now ready to go.
Inverter Features
- True sine wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life
- Audio alarm with warning/error codes to alert user to check inverter condition before unit shutdown
- Automatic shutdown protects overload, over temperature and low/high battery conditions
- High surge capacity for products that require more power to start (2 x constant)
- High efficiency conversion of battery available power to AC power
- Heavy duty DC battery stud connectors
- Includes 5V USB port
Accessories
| Part No. | Product Description | |
|---|---|---|
| EN1210C |  | 35mm Battery Cable Connection Kit with In-Line Fuse & Holder. Suitable for Inverters up to 1200watts. |
| EN1220C |  | 70mm Battery Cable Connection Kit with In-Line Fuse & Holder. Suitable for Inverters up to 2500watts. |
SPECIFICATIONS
SKU:
| ePOWER 400 RCD/GPO Inverter Kit | ePOWER 500 RCD/GPO Inverter Kit | ePOWER 600 RCD/GPO Inverter Kit | ePOWER 1000 RCD/GPO Inverter Kit | ePOWER 2000 RCD/GPO Inverter Kit | |
|---|---|---|---|---|---|
| SKU | RCD-GPO-EP400W | RCD-GPO-EP500W | RCD-GPO-EP600W | RCD-GPO-EP1000W | RCD-GPO-EP2000W |
| AC Output Power | 400W | 500W | 600W | 1000W | 2000W |
| AC Output Current | 1.74A | 2.17A | 2.6A | 4.3A | 8.7A |
| AC Surge Power (Peak) | 800W | 1000W | 900W | 2000W | 4000W |
| AC Output Voltage | 230 Vac / 50 Hz | ||||
| AC Output Waveform | True Sinewave | ||||
| AC Output Socket | 1 outlet | 2 outlets | |||
| Nominal DC Input Voltage | 12.5 VDC | 25 VDC | 12.5 VDC | ||
| No Load battery draw | < 0.8 ADC | < 0.5 ADC | < 0.8 ADC | < 1.2 ADC | |
| DC Input Voltage operating range | 10.5 – 15.5 VDC | 21.0 – 31.0 VDC | 10.5 – 15.5 VDC | ||
| Under Voltage Alarm | 11.2 VDC | 11.2 VDC | 11.2 VDC | ||
| Under Voltage Shutdown | 10.5 VDC | 21.0 VDC | 10.5 VDC | ||
| Under Voltage Recovery | 11.8 VDC | 23.6 VDC | 11.8 VDC | ||
| Over Voltage Shutdown | 15.5 VDC | 31.0 VDC | 15.5 VDC | ||
| USB | 5V, 1A | 5V, 1A | 5V, 1A | 5V, 750 mA | 5V, 750 mA |
| Safety and Environmental | |||||
| Conformance | All required Australian Standards | ||||
| Agency Markings | RCM | ||||
| Operating Temperature | 0°C to 40°C | ||||
| Storage Temperature | -20°C to 60°C | ||||
| Relative Humidity | 5-90% noncondensing | ||||
| Operating Altitude | Up to 3000 meters above sea level | ||||
| Weights and Dimensions | |||||
| Weight | 1.73Kg | 1.73Kg | 1.73Kg | 2.9Kg | 5.5Kg |
| Dimensions (W x L x H) | 225 x 410 x 115mm | 225 x 410 x 115mm | 225 x 410 x 115mm | 228 x 521 x 115mm | 285 x 621 x 135mm |
| Warranty | 3 Years | ||||
| Load | Consumption | Estimate Run time |
|---|---|---|
| Cordless Phone | 5W | 80 hrs |
| Clock/Radio | 8W | 65 hrs |
| Table Lamp | 40W/60W | 22 hrs/ 15 hrs |
| Freezer (8.8 cu. ft.) | 80W | 12 hrs |
| 20″ LCD TV | 100W | 10.5 hrs |
| Refrigerator (18 cu. ft.) | 120W | 8.3 hrs |
| Microwave (mid-size) | 1000W | 44 min |
| Coffee Maker | 1200W | 35 min |
| Vacuum | 1400W | 28 m |
Note: Specifications subject to change without notice.
Above run time is an estimate based on using a 12V-240AH battery bank for reference (Depth of discharge to 50%). Actual run time may vary.
