PRODUCT DETAILS
Enerdrive Dometic Power Distribution Module
The Enerdrive Dometic Power Distribution Module is a DIY-friendly solution for managing all of your electrical loads in a single, central location. It features a main positive input with circuit breakers to protect your inverter (model dependent) and system loads, as well as midi and blade fuse holders for additional loads. A bus bar is also included for all of your negative connections. The Power Distribution Module is available in three versions: With ePRO+ Battery Monitor, With Simarine Battery Monitor and Without Battery Monitor.
Introducing Enerdrive Dometic’s eSYSTEM pre-wired board power system range for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive Dometic have created many different layouts to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time.
FEATURES
Introducing Enerdrive Dometic’s eSYSTEM pre-wired board power system range for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive | Dometic have created many different layouts to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time.

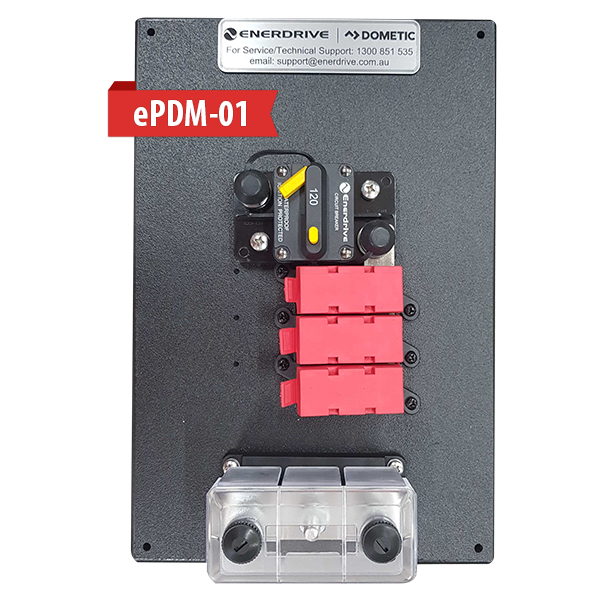

EPDM-01
- Distribution panel ideal for smaller systems without an inverter.
- Main distribution resettable circuit breaker 120A
- 4 x Midi fuses for Loads / Chargers with main bus bar connected to distribution circuit breaker
- 500A Main negative busbar

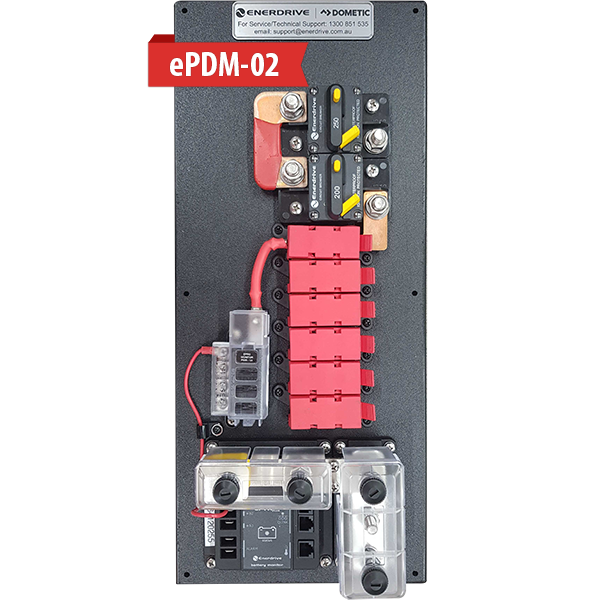

EPDM-02
- Distribution panel ideal for smaller systems with inverters
- Main distribution resettable circuit breaker 120A
- Inverter Circuit breaker 200A standard (optional 250A for 2600W inverters)
- 4 x Midi fuses for Loads / Chargers with main bus bar connected to distribution circuit breaker
- 500A Main negative busbar
- ePRO+ battery monitor for system monitoring and State of Charge tracking
- 4 position 100A fuse block for 24 hour loads

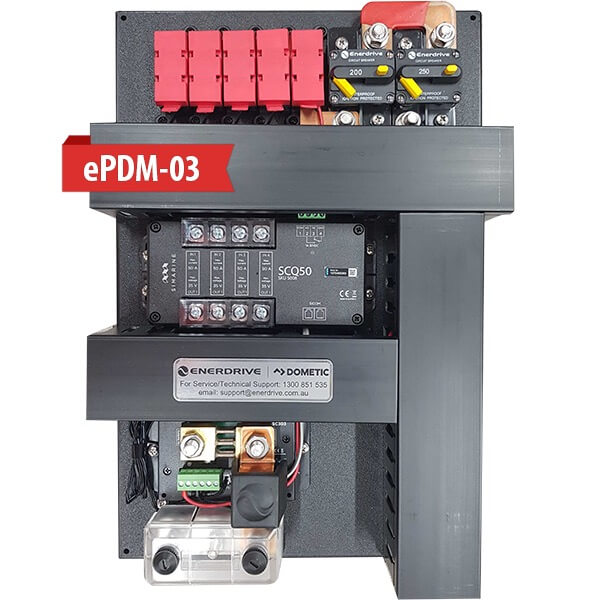

EPDM-03
- Distribution panel ideal for smaller systems with inverters
- Main distribution resettable circuit breaker 120A
- Inverter Circuit breaker 200A standard (optional 250A for 2600W inverters)
- 4 x Midi fuses for Loads / Chargers with main bus bar connected to distribution circuit breaker
- 500A Main negative busbar
- Simarine SC303 main shunt for system monitoring and state of charge tracking
- Simarine SCQ50 quad shunt for individual load and charge monitoring
- Simarine PICO monitor with panel mount black display
SPECIFICATIONS
EPDM-01
Pre-Wired Board Power Systems Comparison
| SKU / Items Included | ESYS-C | ESYS-D | ESYS-E | ESYS-F | ESYS-G | ESYS-H | ESYS-I | ESYS-J | ESYS-K | ESYS-L | ESYS-M-EP-03 | ESYS-M-SI-03 | ESYS-N-EP-01 | ESYS-N-SI-01 | ESYS-O | ESYS-R-EP-01 | ESYS-R-SI-01 | ESYS-R-EP-02 | ESYS-R-SI-02 | ESYS-R-EP-03 | ESYS-R-SI-03 | ESYS-S-EP-02 | ESYS-S-SI-02 | ESYS-U | ESYS-COMBI-EP-01 | ESYS-COMBI-SI-01 | ESYS-COMBI-SI-02 | ESYS-ICA-EP-02 | ESYS-ICA-SI-02 | ESYS-ICB-EP-01 | ESYS-ICC-SI-01 | EPDM-01 | EPDM-02 | EPDM-03 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC2DC Battery Charger (Vehicle/Solar) | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC30-24 x 2 | EN3DC40+ | EN3DC40+ | EN3DC40+ | EN3DC40+ | |||
| AC 230v Battery Charger | EN31240 | EN31240 | EN31240 | EN31240 | EN31240 | EN31260 | EN31260 | EN31260 | EN31240 | EN31240 | EN31240 | EN31240 | EN31240 | EN31240 | EN31260 | EN31260 | EN312100 | EN312100 | EN31260 | EN31260 | EN31240 | |||||||||||||
| AC Transfer Inverter | EN1120S-X | EN1120S-X | EN1120S-X | EN1120S-X | EN1226S-X | EN1226S-X | EN1226S-X | EN1226S-X | EN1226S-X | EN1226S-X | ||||||||||||||||||||||||
| Inverter/Charger Combination Unit | EPC-3000-12 | EPC-3000-12 | EPC-3500-24 | EN230100-12 | EN230100-12 | EN220080-12 | EN230100-12 | |||||||||||||||||||||||||||
| Solar Controller | SR-TS-45-ED | SR-TS-45-ED | SR-TS-45-ED | SR-TS-45-ED | SR-TS-45-ED | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 | EN43540 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | EN43540 x 2 | |||||||||||||
| ePRO+ 500A Battery Monitor with Remote Display | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | EN55050 | |||||||||||||||||||
| Simarine PICO Battery Monitor Screen | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | SI-PICO-3 | ||||||||||||||||||
| Simarine VIA Monitor & Digital Switching | SI-SCC8/SPDU-52 | SI-SCC8/SPDU-52 | ||||||||||||||||||||||||||||||||
| Simarine SC303 300A Main Battery Shunt | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | SI-SC303 | ||||||||||||||||
| Simarine SCQ25T Individual Load/Charge Module | SI-SCQ25T | SI-SCQ25T | SI-SCQ25T | SI-SCQ25T | ||||||||||||||||||||||||||||||
| Simarine SCQ50 Individual Load/Charge Module | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | SI-SCQ50 | |||||||||||||||||||||
| Simarine ST107 Tank Monitoring Module | SI-ST107 | SI-ST107 | SI-ST107 | SI-ST107 | SI-ST107 | SI-ST107 | SI-ST107 | |||||||||||||||||||||||||||
| Low Battery Cutout | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | EN-LBC1224-60 | ||||||||||||||||||
| Main Load Distribution Fuse Block (Low Battery Protected) | EA-FB-07 | EA-FB-07 | EA-FB-08 | EA-FB-08 | EA-FB-08 | EA-FB-08 | ||||||||||||||||||||||||||||
| 24hr Critical Load Distribution Fuse Block | EA-FB-10 | EA-FB-10 | EA-FB-11 | EA-FB-11 | EA-FB-10 | EA-FB-10 | EA-FB-10 | EA-FB-11 | EA-FB-11 | |||||||||||||||||||||||||
| Battery Restart Switch (Lithium Batteries) | EA-START-BUTTON | EA-START-BUTTON | EA-START-BUTTON | EA-START-BUTTON | EA-START-BUTTON | EA-START-BUTTON | EA-START-BUTTON | |||||||||||||||||||||||||||
| Inverter Circuit Breaker (Pre Wired Inverter Supply) | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB200 | EN-RCB250 | EN-RCB250 | EN-RCB250 | EN-RCB250 | EN-RCB250 | EN-RCB250 | EN-RCB200 | EN-RCB250 | EN-RCB250 | EN-RCB250 | ||||||||||||
| Inverter/Charger Fuse Holder (Pre Wired Inverter/Charger Supply) | 400A T-Class | 400A T-Class | 400A T-Class | 400A T-Class | 400A T-Class | |||||||||||||||||||||||||||||
| Solar Input Circuit Breaker | EN-RCB40 | EN-RCB40 | EN-RCB40 | EN-RCB40 | EN-RCB60 | EN-RCB60 | EN-RCB60 | EN-RCB60 | EN-RCB60 | EN-RCB50 x 2 / EN-RCB40 x 1 | EN-RCB50 x 2 / EN-RCB40 x 1 | EN-RCB50 x 2 | EN-RCB50 | EN-RCB50 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB40 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB50 x 2 | EN-RCB40 | |||||||
| Dimensions (mm) | 1185W x 380H x 125Dmm | 490W x 600H x 100Dmm | 490W x 600H x 100Dmm | 1185W x 380H x 125Dmm | 790W x 380H x 100Dmm | 1195W x 380H x 111Dmm | 1195W x 380H x 111Dmm | 920W x 380H x 111Dmm | 490W x 600H x 100Dmm | 490W x 600H x 100Dmm | 600W x 350H x 100Dmm | 600W x 350H x 100Dmm | 1190W x 380H x 100Dmm | 1190W x 380H x 100Dmm | 520W x 600H x 85Dmm | 535W x 1195H x 125Dmm | 535W x 1195H x 125Dmm | 535W x 1195H x 125Dmm | 535W x 1195H x 125Dmm | 535W x 1195H x 125Dmm | 535W x 1195H x 125Dmm | 550W x 1195H x 125Dmm | 550W x 1195H x 125Dmm | 800W x 380H x 100Dmm | 535W x 1195H x 147Dmm | 535W x 1195H x 147Dmm | 535W x 1195H x 147Dmm | 535W x 1195H x 120Dmm | 535W x 1195H x 120Dmm | 1020W x 350H x 120Dmm | 715W x 605H x 120Dmm | 300W x 200H x 78Dmm | 200W x 460H x 78Dmm | 290W x 435H x 78Dmm |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
| (*) Indicates Standard Fitment |
