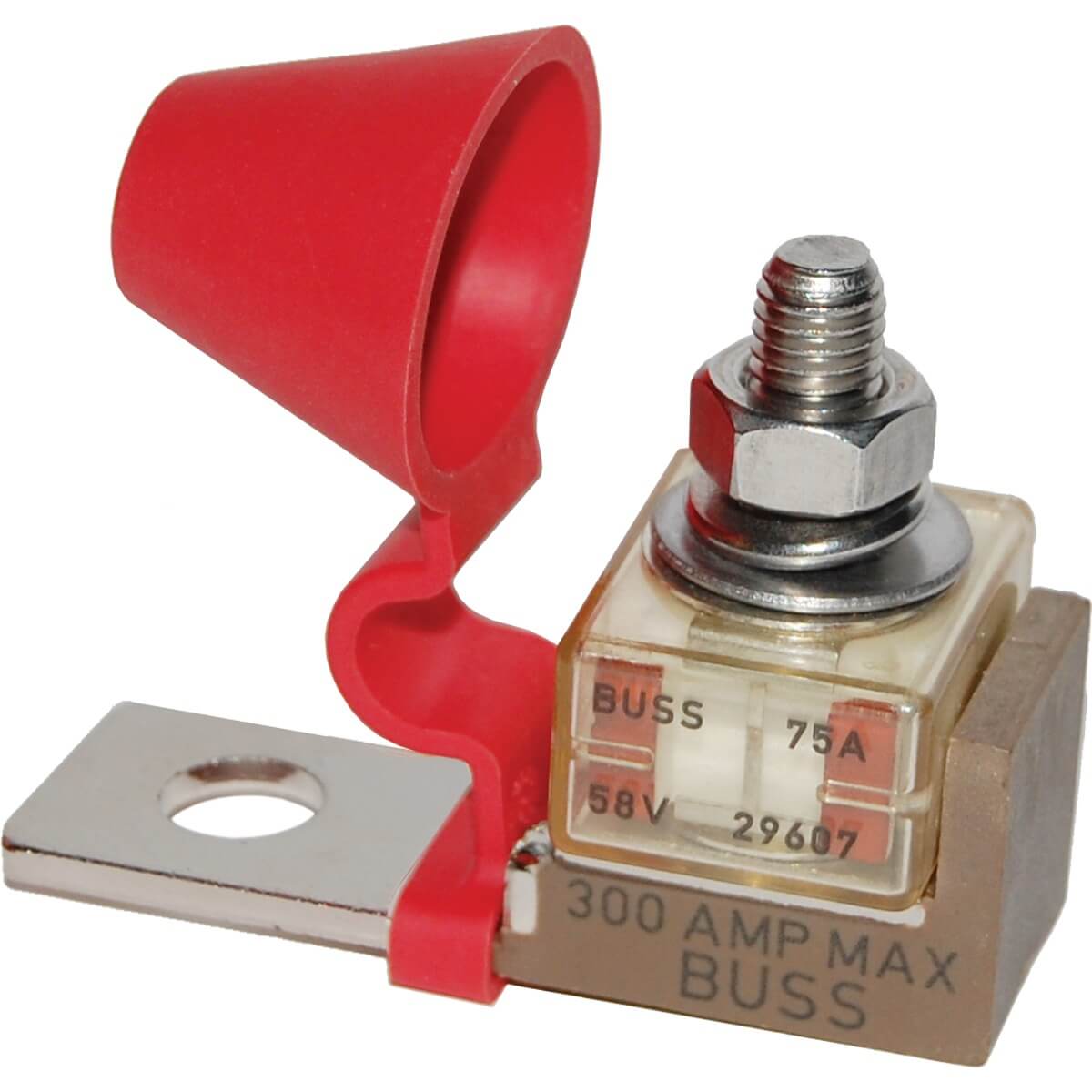

MRBF Terminal Fuse Block - 30 to 300A

MRBF Terminal Fuse Block - 30 to 300A

$48.00
Skip to product information
MRBF Terminal Fuse Block - 30 to 300A
  • MRBF Terminal Fuse Block - 30 to 300A
MRBF Terminal Fuse Block - 30 to 300A

MRBF Terminal Fuse Block - 30 to 300A

$48.00
Taxes included. Shipping calculated at checkout.

BUY NOW, PAY IT IN 4 INTEREST-FREE INSTALLMENTS

PayPal$12.00 in 4 payments every 2 weekswith
Afterpay$12.00 in 4 payments every 2 weekswith

Estimated amounts shown for illustration only. This is not a financing offer and does not guarantee eligibility — availability and exact terms are decided by each provider at checkout.
PRODUCT DETAILS
  • Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
  • Provides high current protection in tight space constraints
  • Ignition protected when used with Blue Sea Systems’ MRBF Terminal Fuse
  • Isolated stud design uses standard M8 hardware and permits stacking of terminals
  • Insulating cap prevents accidental shorts
  • Accepts 5/16″ ring terminals
  • Mounts on 3/8” terminal studs
  • Fuse sold separately
FEATURES
  • Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
  • Provides high current protection in tight space constraints
  • Ignition protected when used with Blue Sea Systems’ MRBF Terminal Fuse
  • Isolated stud design uses standard M8 hardware and permits stacking of terminals
  • Insulating cap prevents accidental shorts
  • Accepts 5∕16″ ring terminals
  • Fuse sold separately
SPECIFICATIONS
BS-5191B
MRBF Terminal Fuse Block – 30 to 300A
Maximum Amperage300A
Maximum Voltage58V DC
Maximum Torque75 in-lb (8.47 Nm)
Terminal StudM8 (5/16″)
Weight0.07 kg
