PRODUCT DETAILS
Morningstar’s SunSaver™ is the world’s leading small solar charge controller for professional and consumer applications. This device includes a combination of features and capabilities not found in other small PV controllers. It is rated for Hazardous Locations – Class 1, Division 2 Groups A-D, making it the preferred choice for Oil & Gas applications.
Additional information
| SKU | SR-SS-6L-12V, SR-SS-10L-12V, SR-SS-10L-24V, SR-SS-20L-12V, SR-SS-20L-24V |
|---|
Accessories
| Model | SS -6-12V | SS -6L-12V | SS -10-12V | SS -10L-12V | SS -10L-24V | SS -20L-12V | SS -20L-24V |
|---|---|---|---|---|---|---|---|
| Din Rail Clips | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
FEATURES
Morningstar SunSaver Controller. 6, 10 or 20 amps / 12 or 24 volts.
The Morningstar SunSaver is the world’s leading small solar controller for industrial and leisure markets.
- Extended battery life – PWM 4 stage battery charging with temperature compensation.
- Sealed/flooded battery select.
- TROPICALIZATION – Epoxy encapsulation, marine rated terminals and anodized aluminium case provides environmental protection.
- Ideal for oil/gas applications – Approved for use in hazardous locations: Class 1, Division 2, Groups A-D.
- NEW FEATURES – Full electronic protections, 3 battery state LED’s, cover for terminals, dead battery recovery, 15V max. load.
SPECIFICATIONS

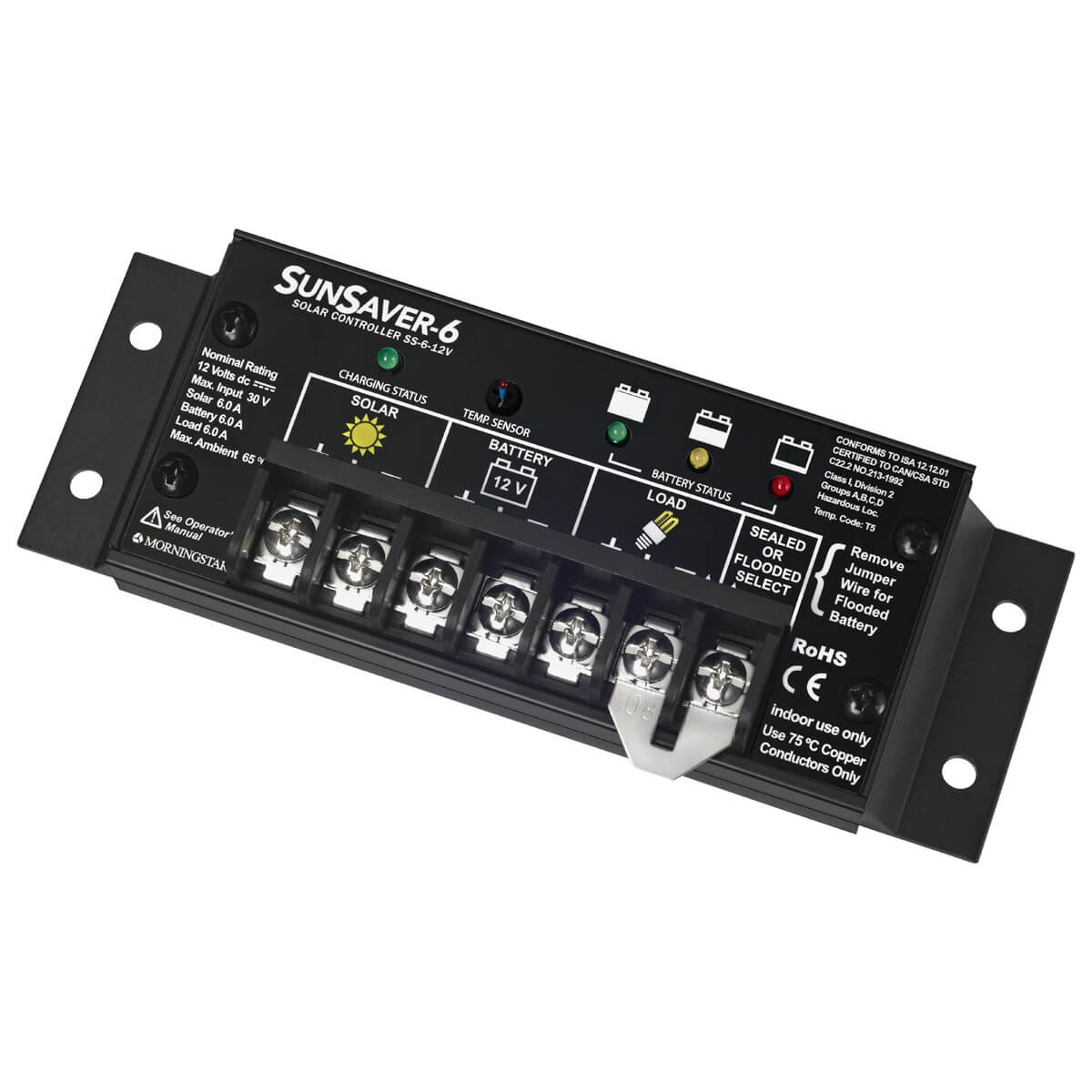

SR-SS-6L-12V
| Morningstar SunSaver Controller | |||||
|---|---|---|---|---|---|
| SKU | SR-SS -6L-12V | SR-SS -10L-12V | SR-SS -10L-24V | SR-SS -20L-12V | SR-SS -20L-24V |
| Load Control | Yes | Yes | Yes | Yes | Yes |
| Solar Rating | 6 A | 10 A | 10 A | 20 A | 20 A |
| Load Rating | 6 A | 10 A | 10 A | 20 A | 20 A |
| System Voltage | 12 V | 12 V | 24 V | 12 V | 24 V |
| Ambient Operating Temperature | –40°C to +60°C | ||||
| Terminal | 16 mm | ||||
| Weight | 0.60 kg | ||||
| Dimensions | 16.8 x 5.5 x 7.0 cm | ||||
| Warranty | 5 years | ||||
