The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines.
FEATURES

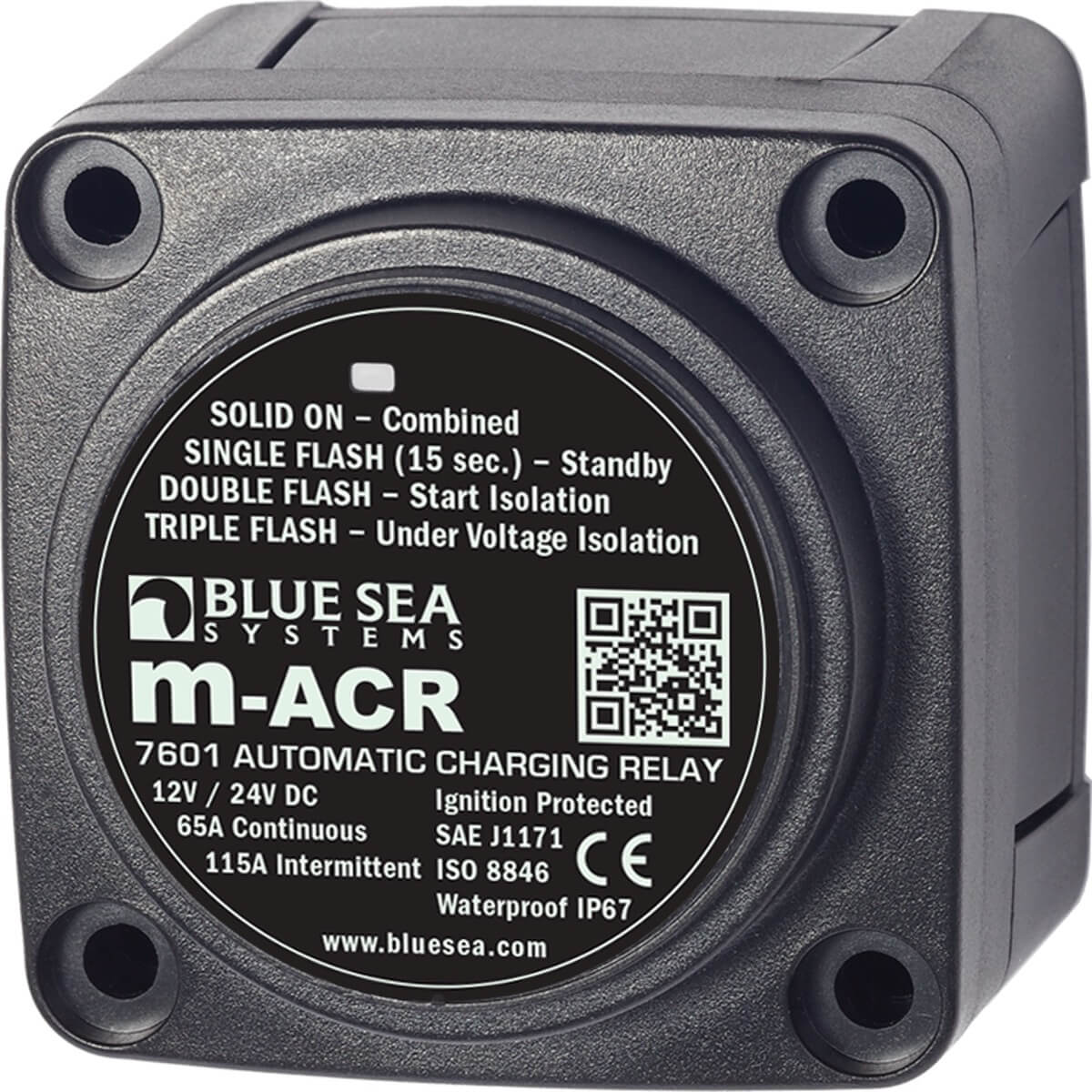

m-Series Automatic Charging Relay – 12/24V DC 65A
- Senses charging on two battery banks
- Pull off and snap on insulating cover
- LED indicates ACR status
- 1 ∕4″ x .032″ male quick connect terminal for ground
SPECIFICATIONS
BS-7601B
| m-Series Automatic Charging Relay – 12/24V DC 65A | |
|---|---|
| Nominal Voltage | 12V DC 24V DC |
| Start Isolation | Yes |
| Amperage Operating Current | 90mA (Combine) 15mA (Open) |
| Terminal Stud Torque | 60 in-lb (6.78 Nm) |
| Continuous Rating | 65A |
| Intermittent Rating | 115A (5 min) |
| Cable Size to Meet Ratings | 6 AWG |
| Maximum Cable Size | 1/0 AWG |
| Terminal Stud Size | 1/4″ – 20 (M6) |
| Relay Contact Position | |
| Combine 30 sec | 13.6V DC |
| Open 10 sec | 12.35V DC |
| Open 30 sec | 12.75V DC |
| Open High | 16.0V |
| Under Voltage Lockout | 9.5V |
| Weight | 0.43 kg |
