PRODUCT DETAILS
Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life.
FEATURES

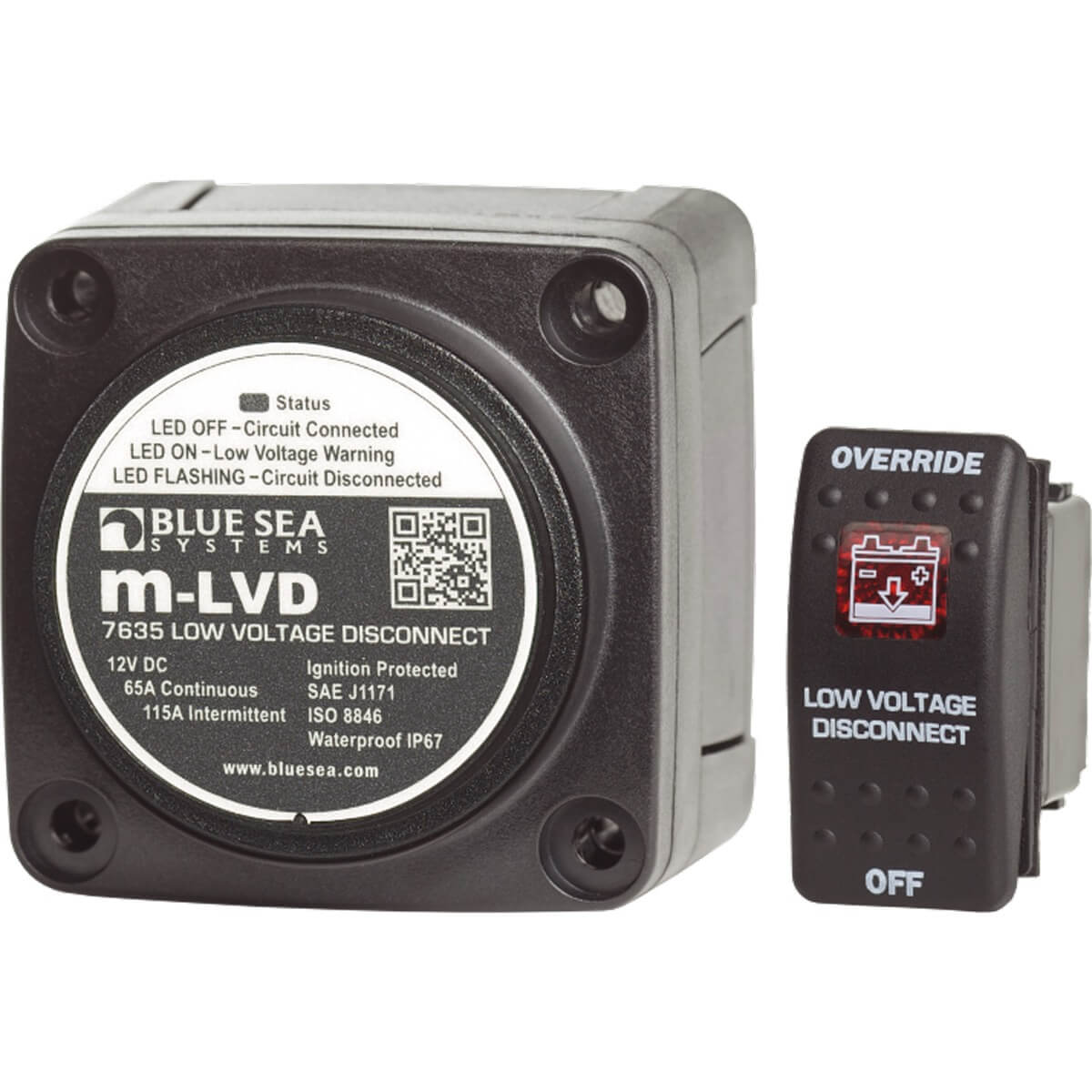

m-LVD Low Voltage Disconnect
Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life
A dead battery is one of the most common reasons for a tow. Don’t get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.
- Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect
- Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)
- Remote Control Switch Functions:
- Disconnect Voltage Adjustment – Sets desired disconnect voltage
- Override – Temporarily delays circuit disconnect for 10 minutes
- OFF – Temporarily disconnects circuits until voltage rises
- Override or OFF – Silences alarm (optional alarm required)
- Case design allows surface, front panel, or rear panel mounting
- Rear insulating cover protects rear contacts
- Waterproof – rated IP67 for temporary immersion
SPECIFICATIONS
BS-7635
| m-LVD Low Voltage Disconnect | |
|---|---|
| Nominal Voltage | 12V DC |
| Amperage Operating Current | 95mA (Connected) 4mA (Open) |
| Terminal Stud Torque | 60 in-lb (6.78 Nm) |
| Continuous Rating | 65A |
| Intermittent Rating | 115A (5 Min) |
| Maximum Cable Size | 1/0 AWG (50mm2) |
| Terminal Stud Length | 7/16 in (11.11 mm) |
| Terminal Stud Size | 1/4″ – 20 (M6) |
| Weight | 0.77lb (0.35 kg) |
