PRODUCT DETAILS

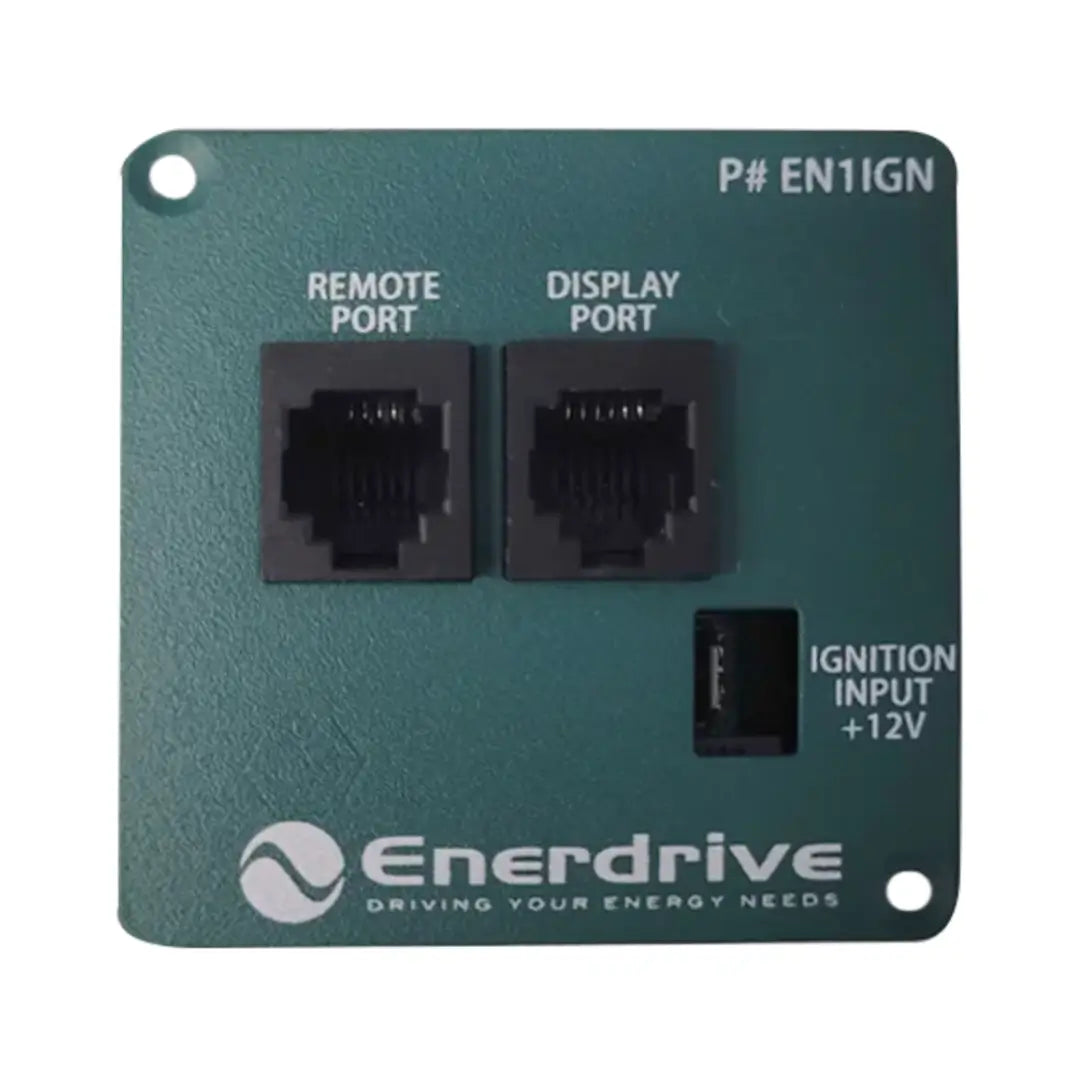

The Ignition “On” Remote Module for the X Inverter runs in series with the original remote panel. By applying a 12v or /24v voltage to the Ignition spade terminal on the EN1IGN remote module, the inverter will turn on. No voltage, the inverter will turn off.
FEATURES
SPECIFICATIONS
EN1IGN
| ePOWER 400W G2 Inverter | |
|---|---|
| SKU | EN1104S-12V |
| AC Output Power | 400W |
| AC Output Current | 1.74A |
| AC Surge Power (Peak) | 800W |
| AC Output Voltage | 230 Vac / 50 Hz |
| AC Output Waveform | True Sinewave |
| AC Output Socket | 1 outlet |
| Nominal DC Input Voltage | 12.5 VDC |
| No Load battery draw | < 0.8 ADC |
| DC Input Voltage operating range | 10.5 – 15.9 VDC |
| Under Voltage Alarm | 11.0 VDC |
| Under Voltage Shutdown | 10.5 VDC |
| Under Voltage Recovery | 12.0 VDC |
| Over Voltage Shutdown | 15.9 VDC |
| Safety and Environmental | |
| Conformance | All required Australian Standards |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 5-90% noncondensing |
| Weights and Dimensions | |
| Weight | 1.1Kg |
| Dimensions (W x L x H) | 152 x 218 x 66mm |
| Warranty | 5 Years |
