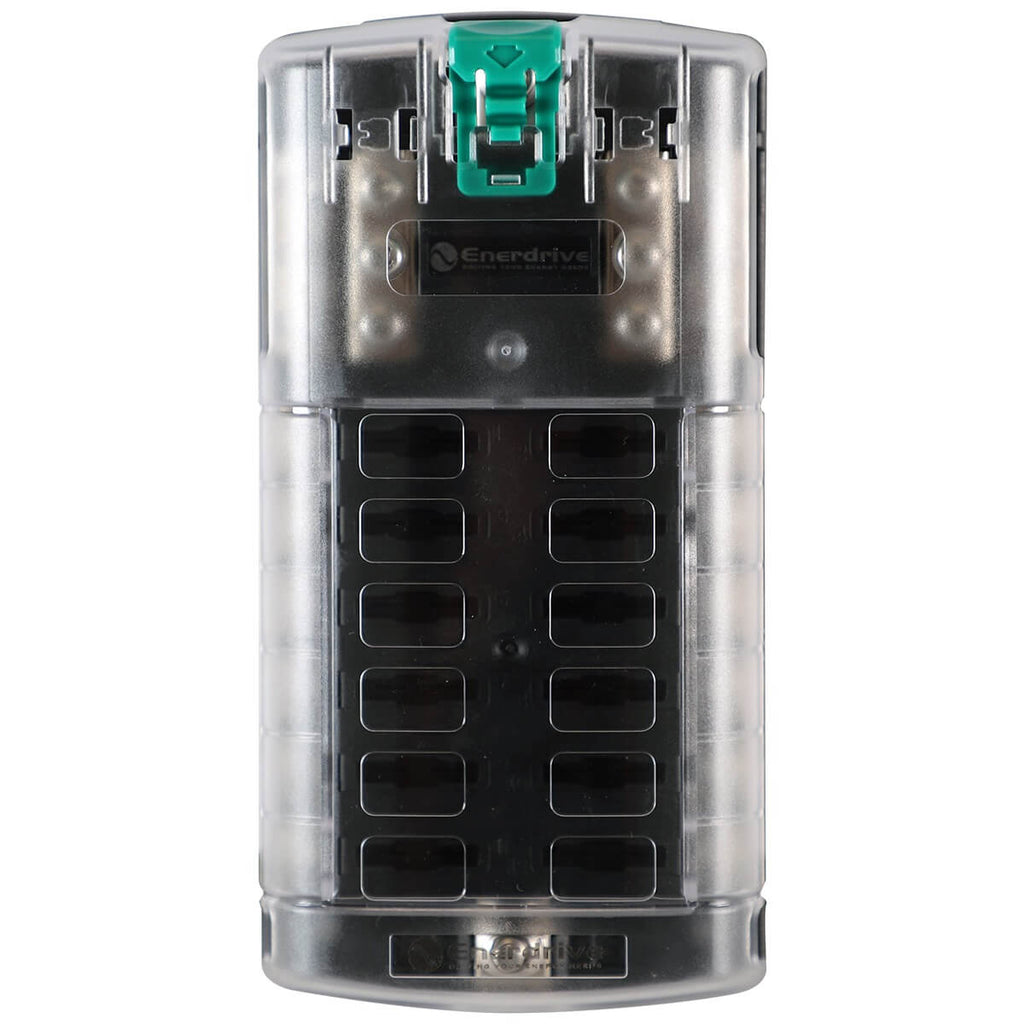

ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover
Consolidates branch circuits and in-line fuses
- Positive distribution bus with #10-32 stud
- 32V 100Amp Max – 30Amp Max per circuit
- Can be used for 24-hour circuits
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
- Includes two label sets and screws.
- Retail Packaging
FEATURES
ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover
Consolidates branch circuits and in-line fuses
- Positive distribution bus with #10-32 stud
- 32V 100Amp Max – 30Amp Max per circuit
- Can be used for 24-hour circuits
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
- Includes two label sets and screws.
- Retail Packaging
SPECIFICATIONS
EA-FB-07
Fuse Block Rear Panel Mount Range Specifications
| Fuse Block Rear Entry Panel Mount 1 In 6 Out with LEDs | Fuse Block Rear Entry Panel Mount 1 In 6 Out with LEDs | Fuse Block Rear Entry Panel Mount 6 In 6 Out with LEDs | Fuse Block Rear Entry Panel Mount 1 In 12 Out with LEDs | Fuse Block Rear Entry Panel Mount 1 In 12 Out with LEDs | Fuse Block Rear Entry Panel Mount 12 In 12 Out with LEDs | Fuse Block 12 Circuit with Negative Bus and Cover | |
|---|---|---|---|---|---|---|---|
| SKU | EA-FB-01 [DISCONTINUED] | EA-FB50A-01 | EA-FB-02 | EA-FB-03 [DISCONTINUED] | EA-FB50A-03 | EA-FB-04 | EA-FB-07 |
| Circuits | 6 | 6 | 6 | 12 | 12 | 12 | 12 |
| Maximum Amperage | 15A per circuit 50A per block | 15A per circuit 50A per block | 20A per circuit | 15A per circuit 50A per block | 15A per circuit 50A per block | 20A per circuit | 30A per circuit 100A per block |
| Maximum Voltage | 32V DC | 32V DC | 32V DC | 32V DC | 32V DC | 32V DC | 32V DC |
| Mounting | 8G Screw [M4] | 8G Screw [M4] | 8G Screw [M4] | 8G Screw [M4] | 8G Screw [M4] | 8G Screw [M4] | 8G Screw [M4] |
| Positive Bus Input | #8-32 with Flat/Spring Washers | #8-32 with Flat/Spring Washers | Spade Terminals, Rear | #8-32 with Flat/Spring Washers | #8-32 with Flat/Spring Washers | Spade Terminals, Rear | #10-32 Stud |
| Positive Bus Output | Spade Terminals | Spade Terminals | Spade Terminals, Rear | Spade Terminals | Spade Terminals | Spade Terminals, Rear | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N.m) | 24 in-lb (2.71 N.m) | 24 in-lb (2.71 N.m) | 24 in-lb (2.71 N.m) | 24 in-lb (2.71 N.m) | 24 in-lb (2.71 N.m) | 24 in-lb (2.71 N.m) |
| Weight | 0.17 kg | 0.17 kg | 0.18 kg | 0.23 kg | 0.23 kg | 0.23 kg | 0.34 kg |
| Size | 92 x 87 x 61mm | 92 x 87 x 61mm | 92 x 87 x 61mm | 130 x 87 x 62mm | 130 x 87 x 62mm | 130 x 87 x 61mm | 164 x 84 x 39mm |
