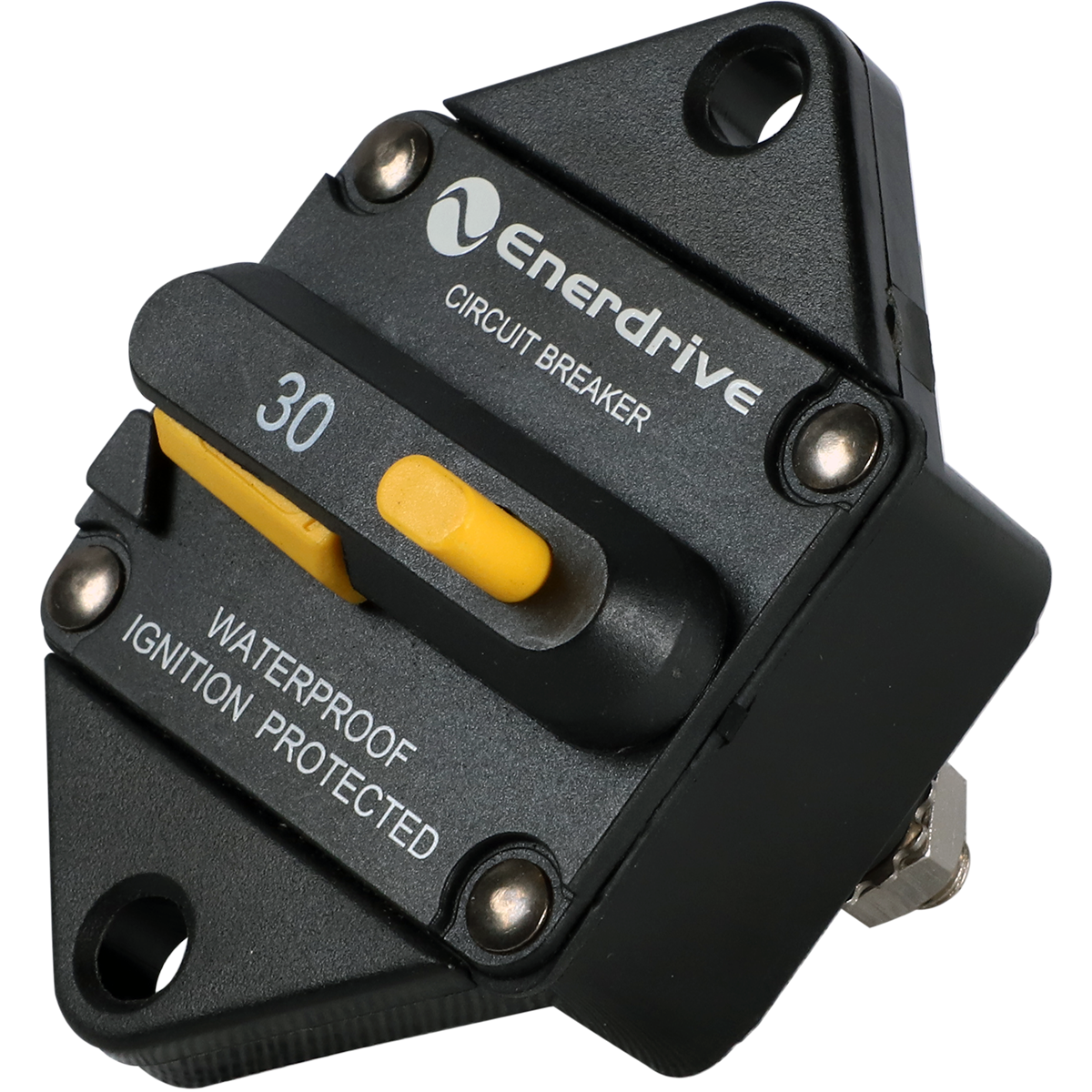

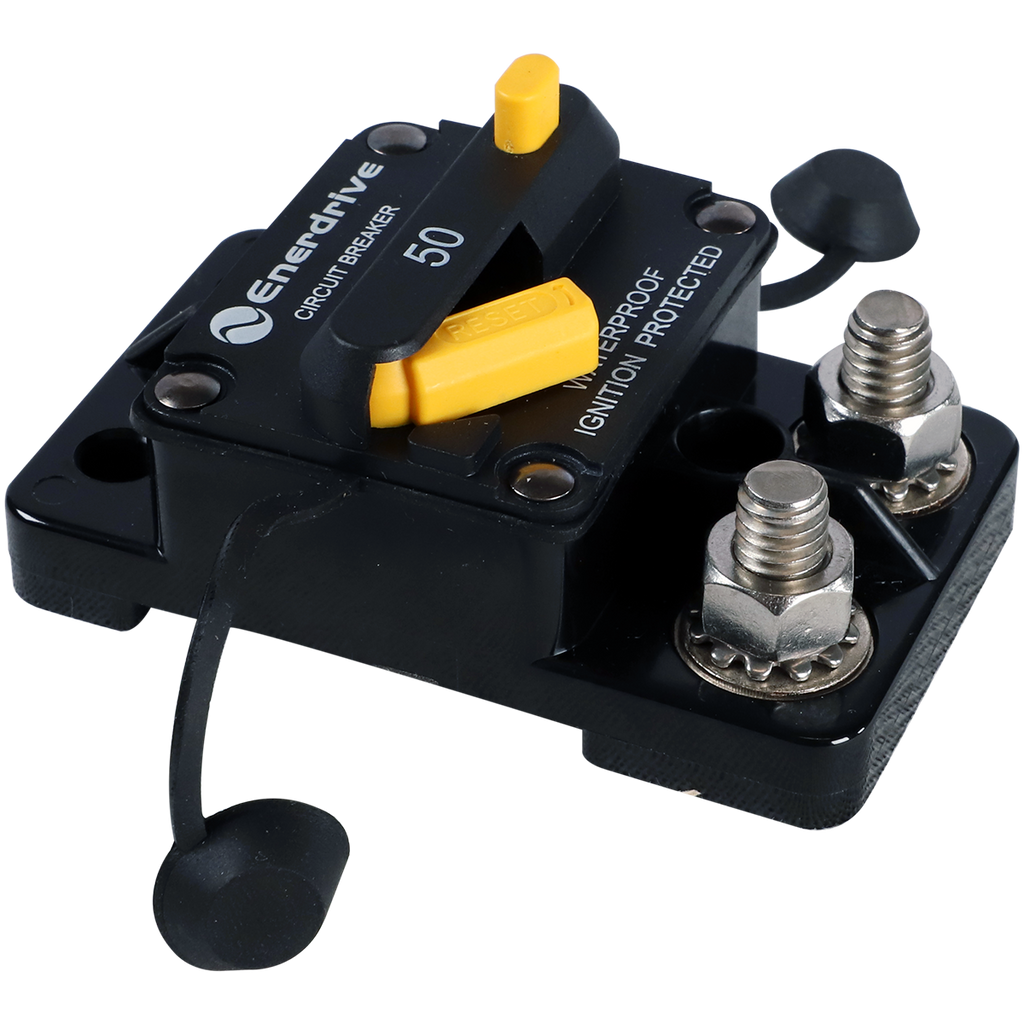

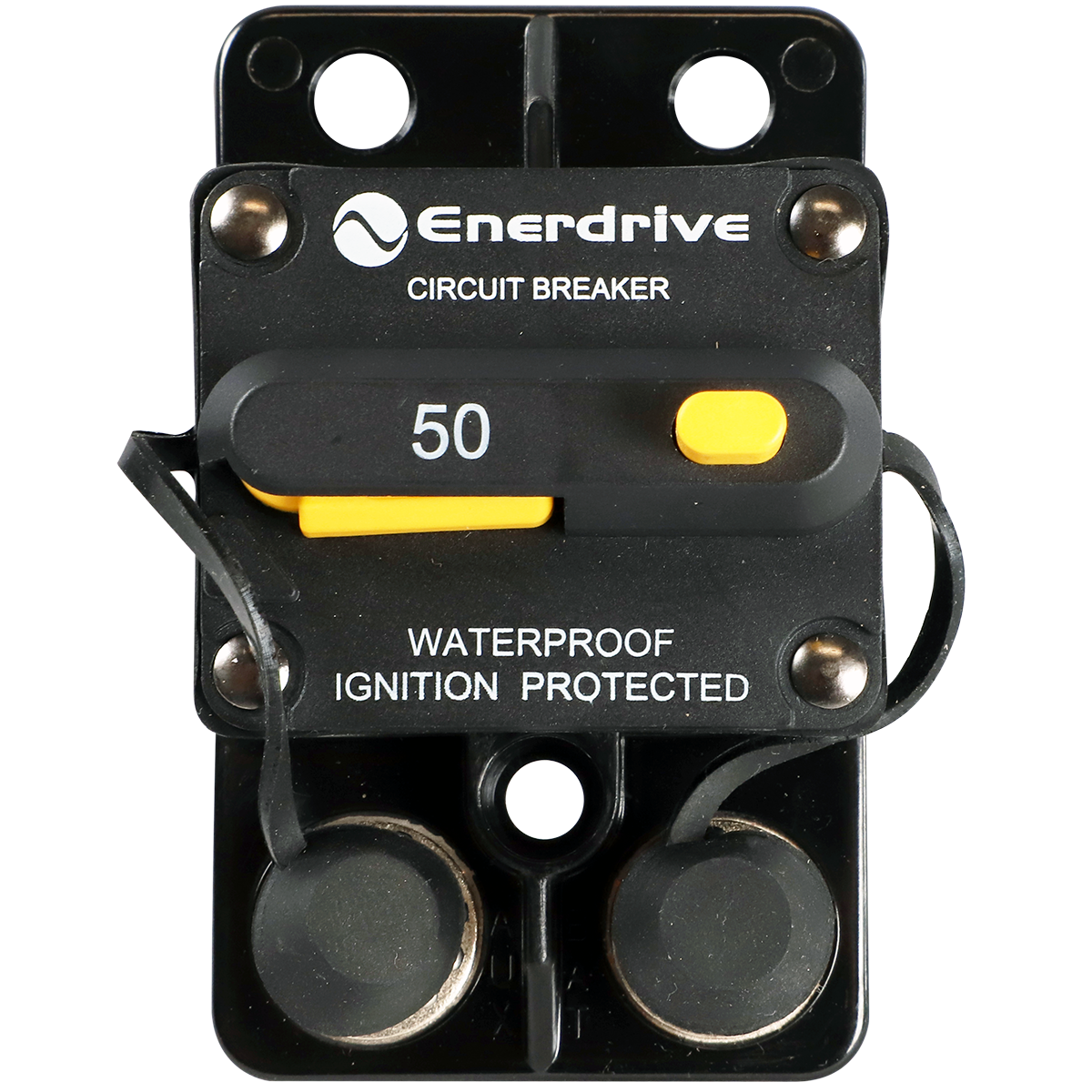

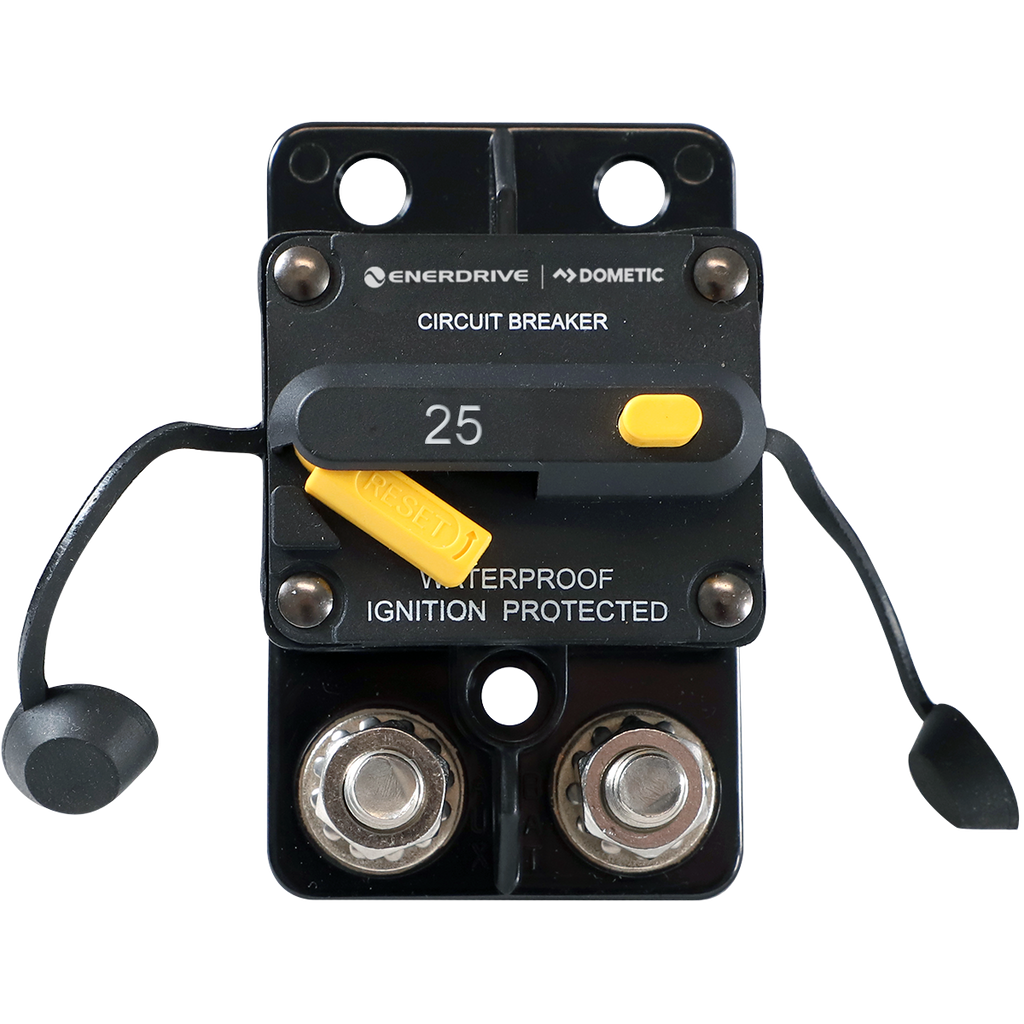

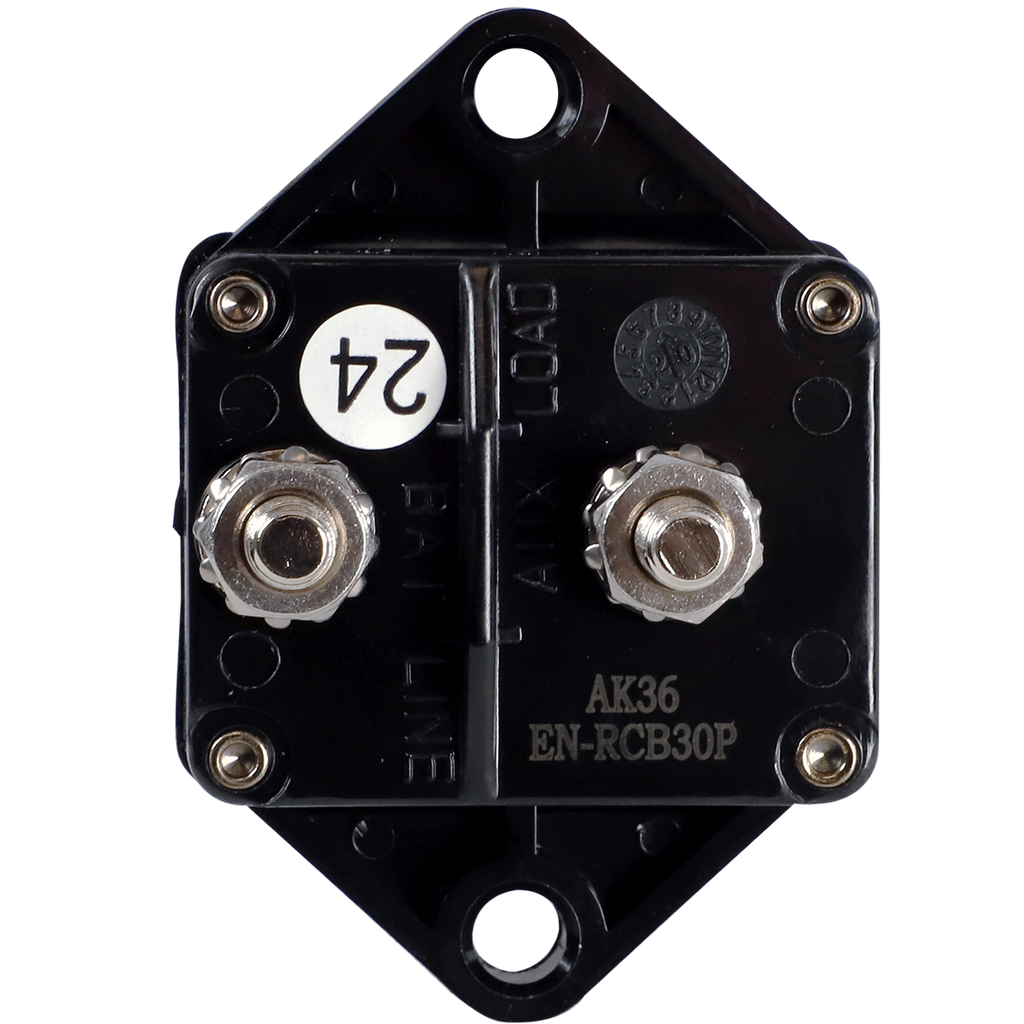

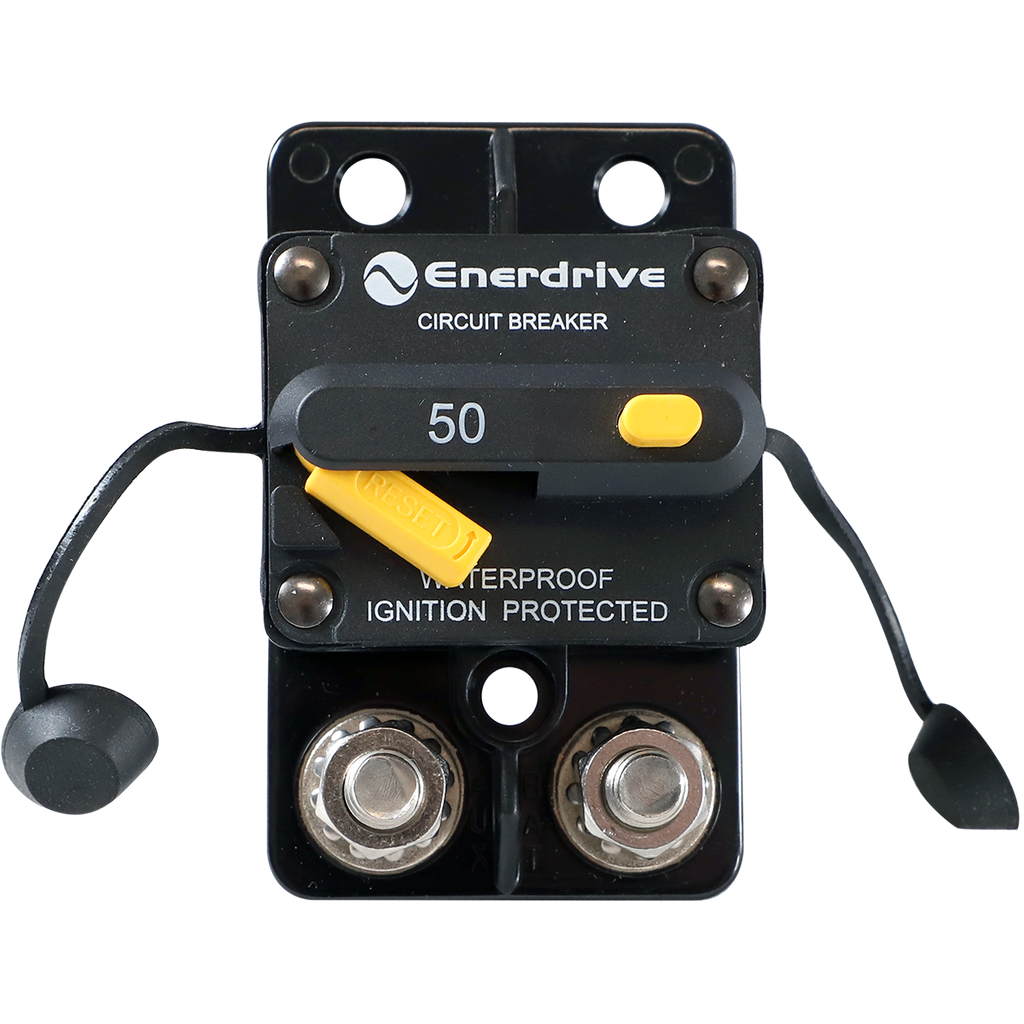

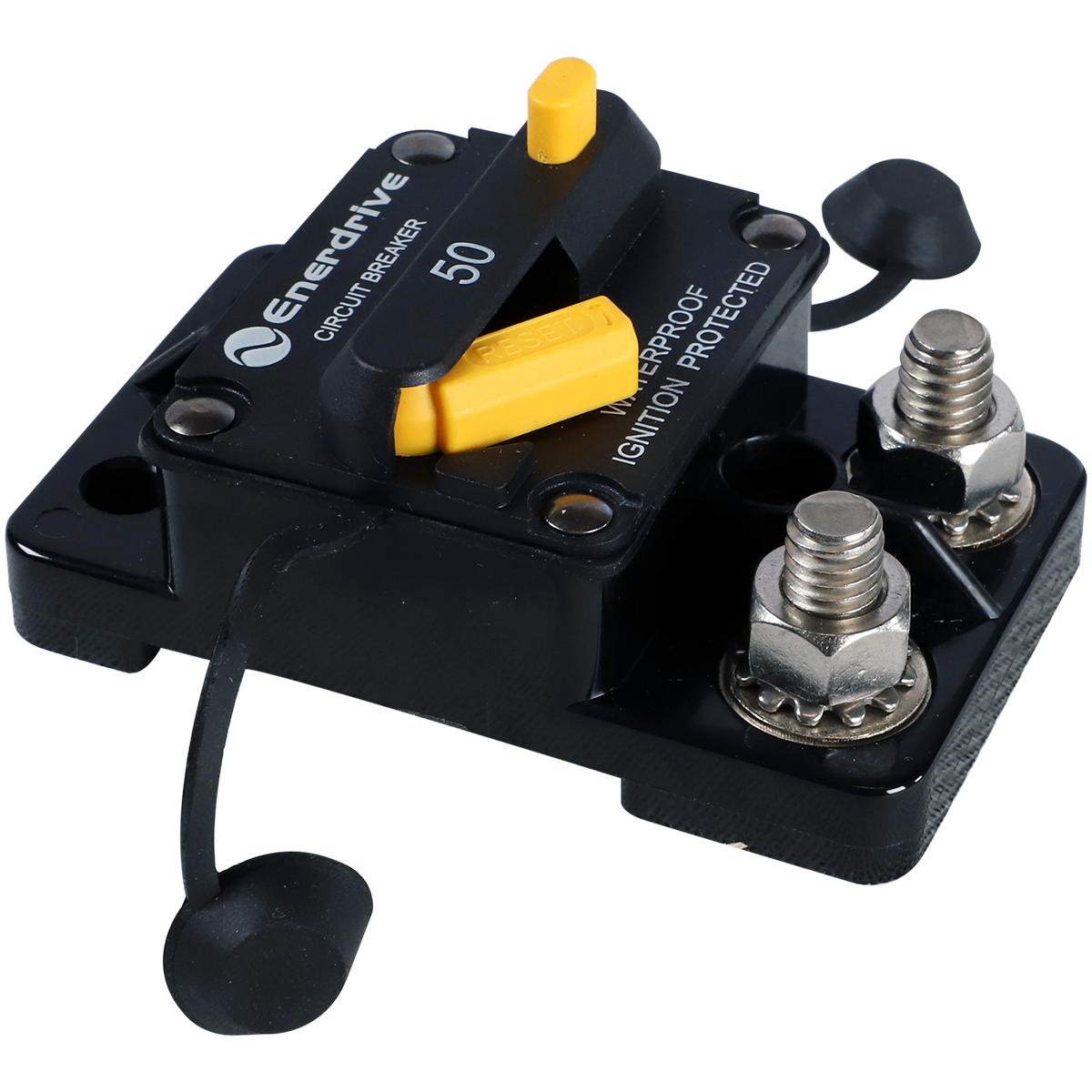

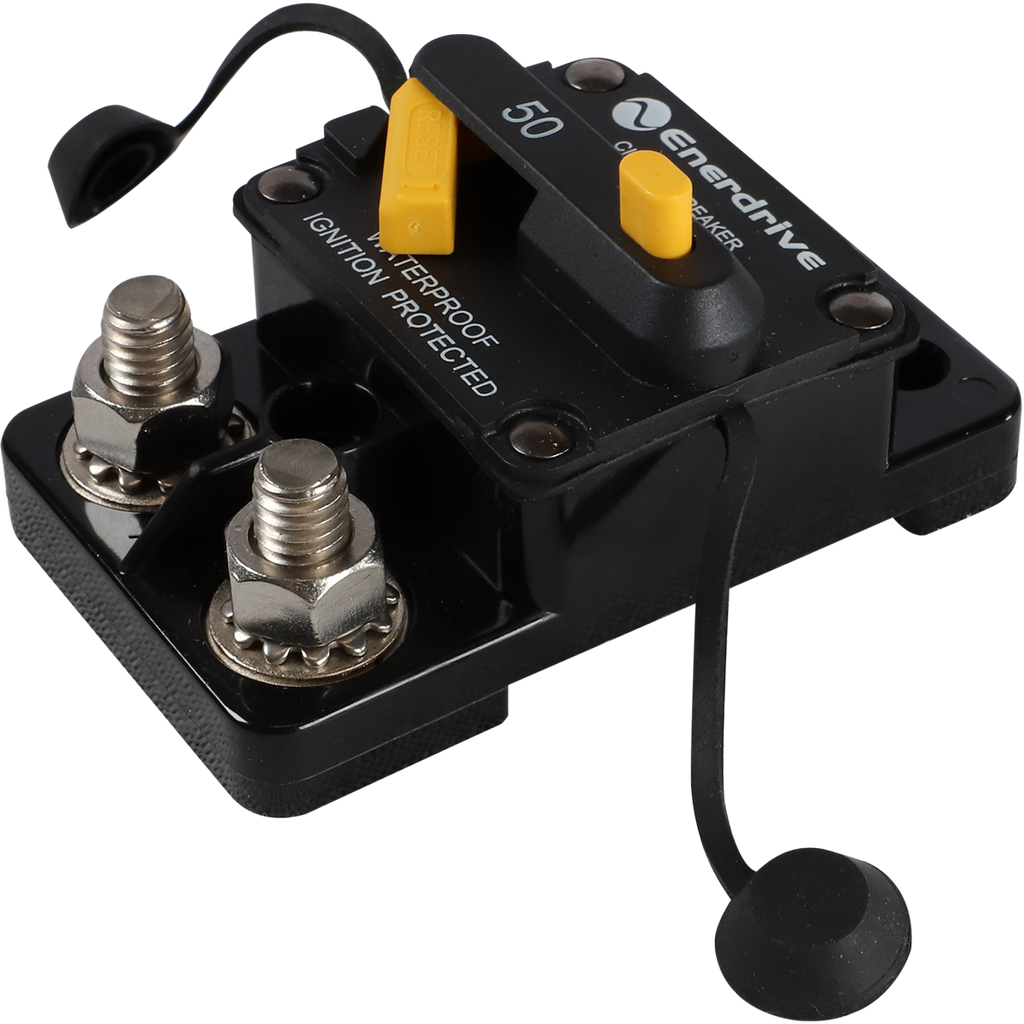

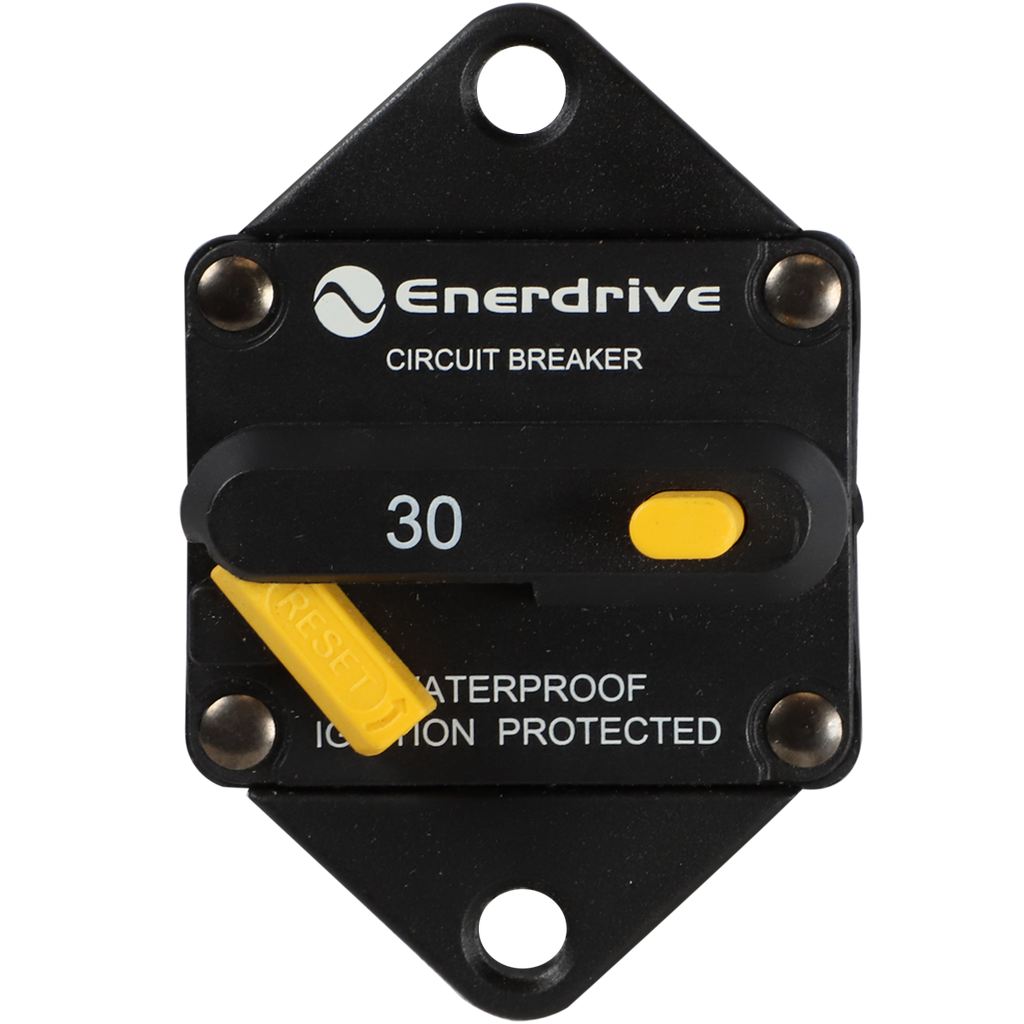

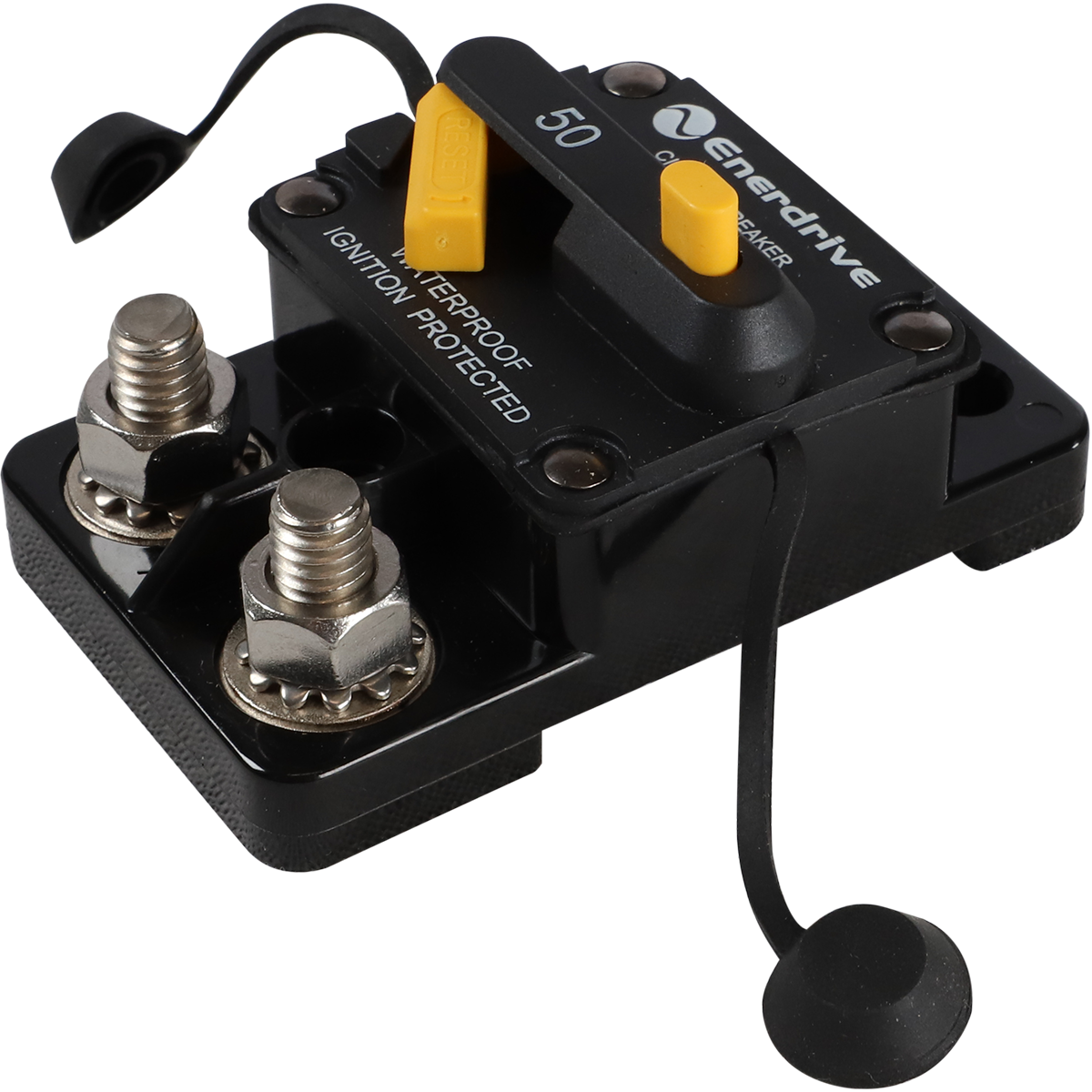

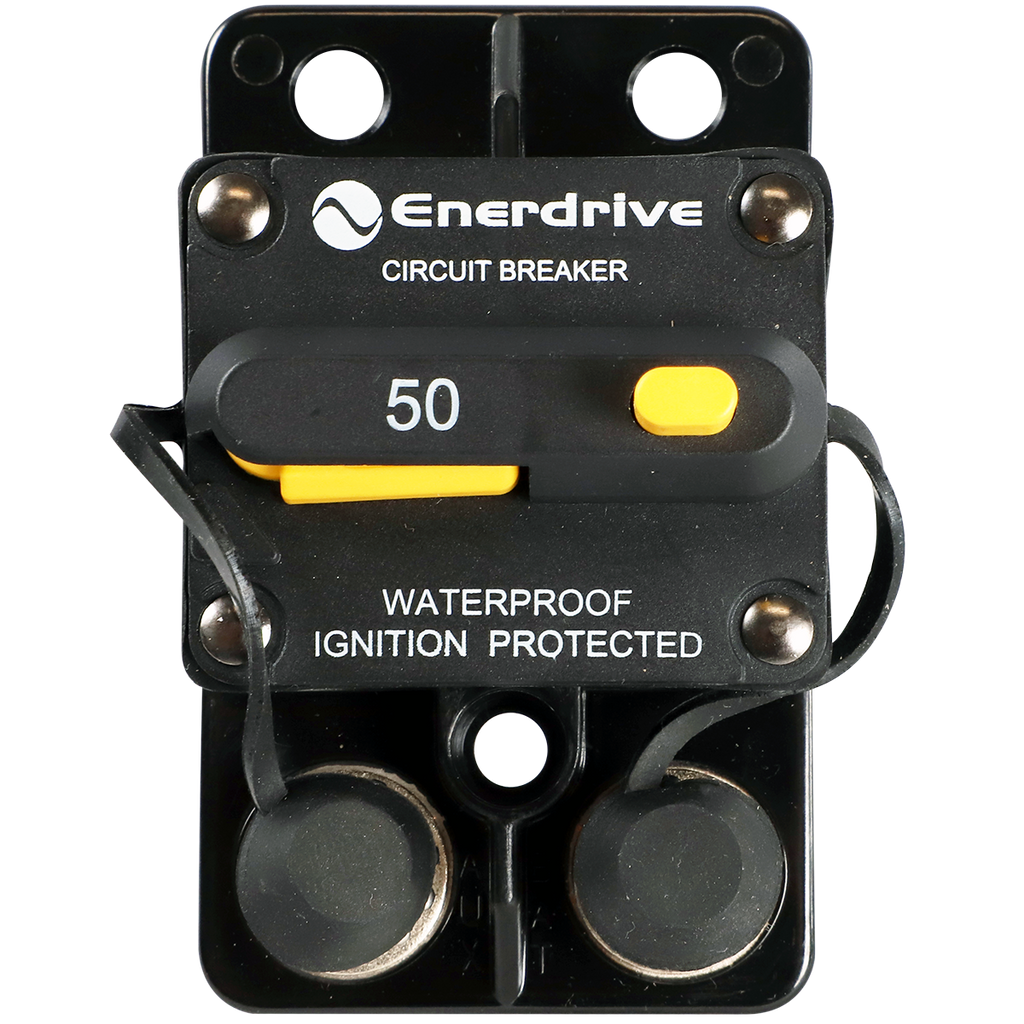

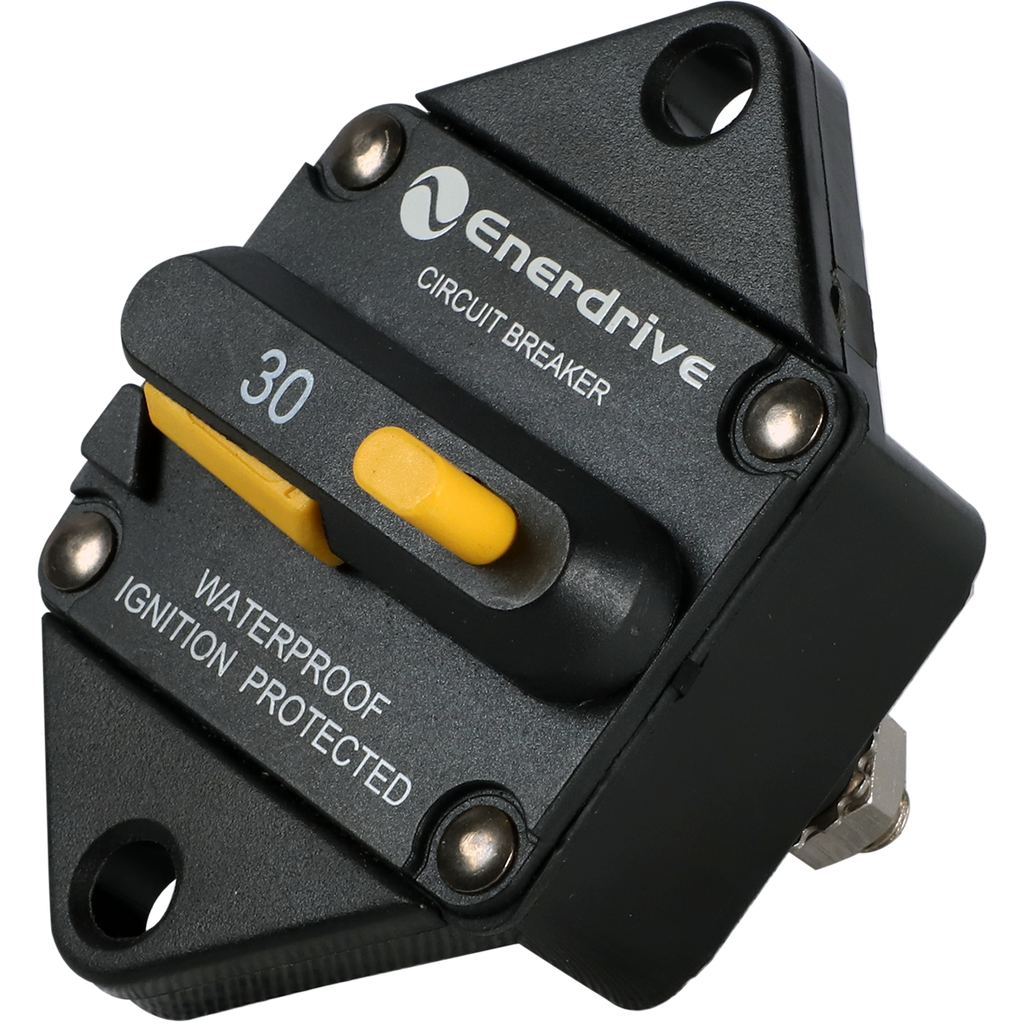

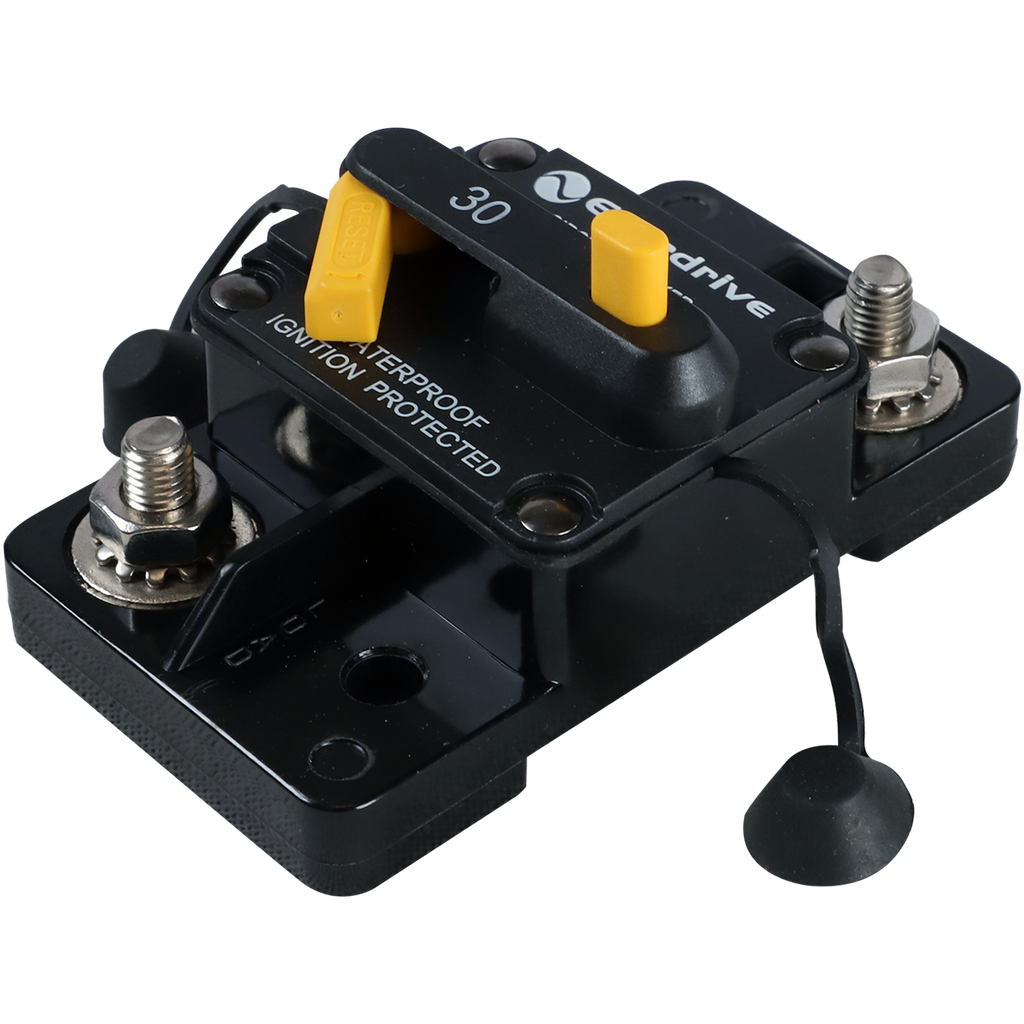

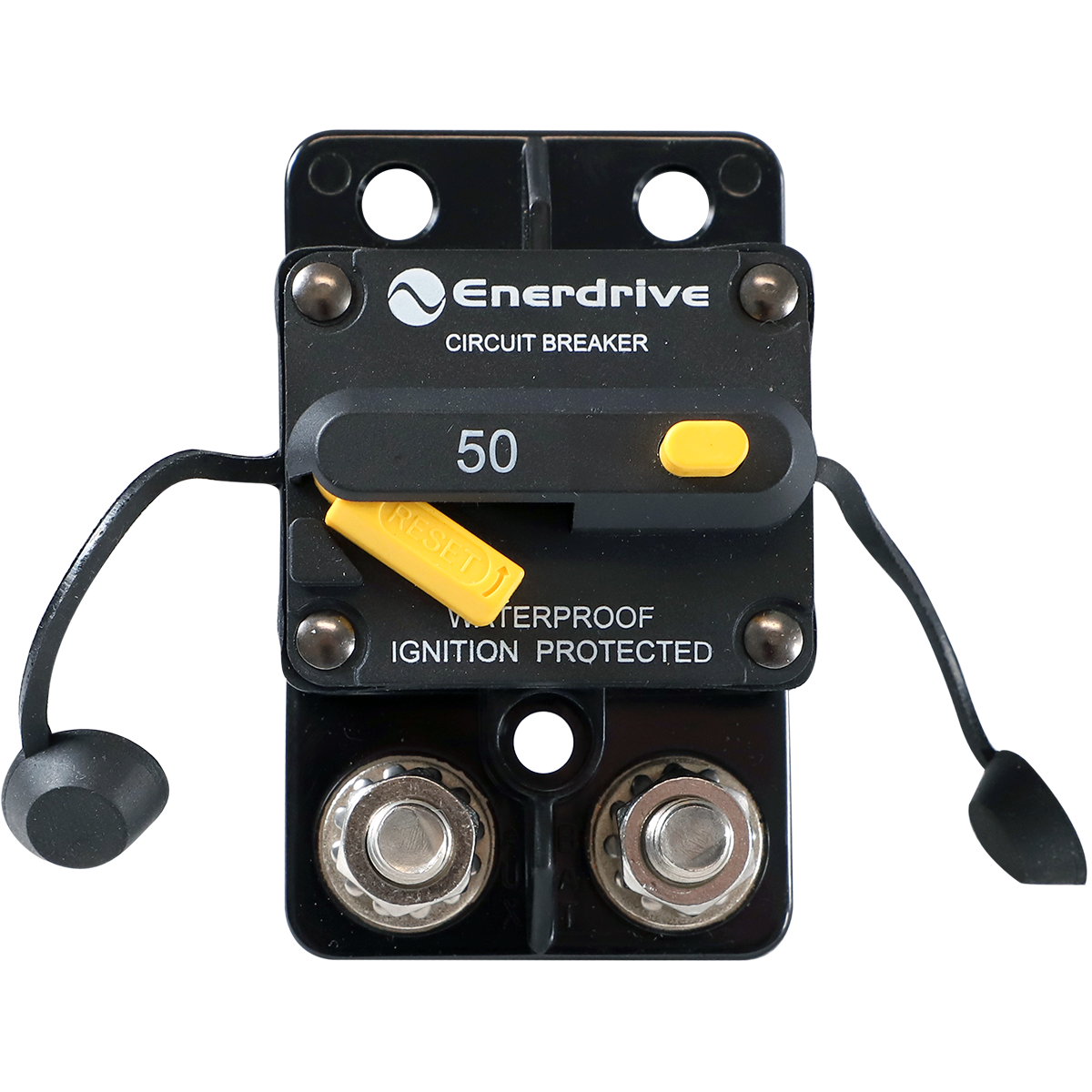

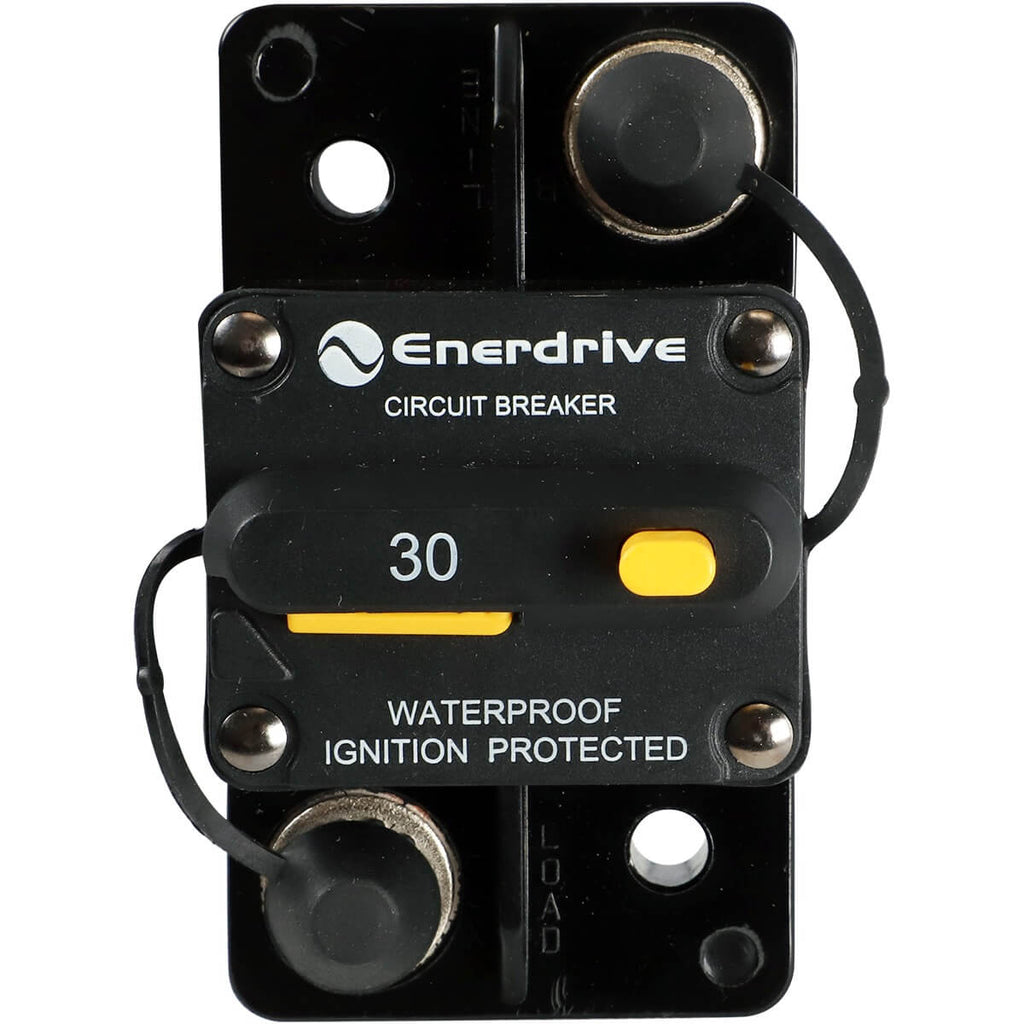

PRODUCT DETAILS
- Drop in replacement for 185-Series Circuit Breakers

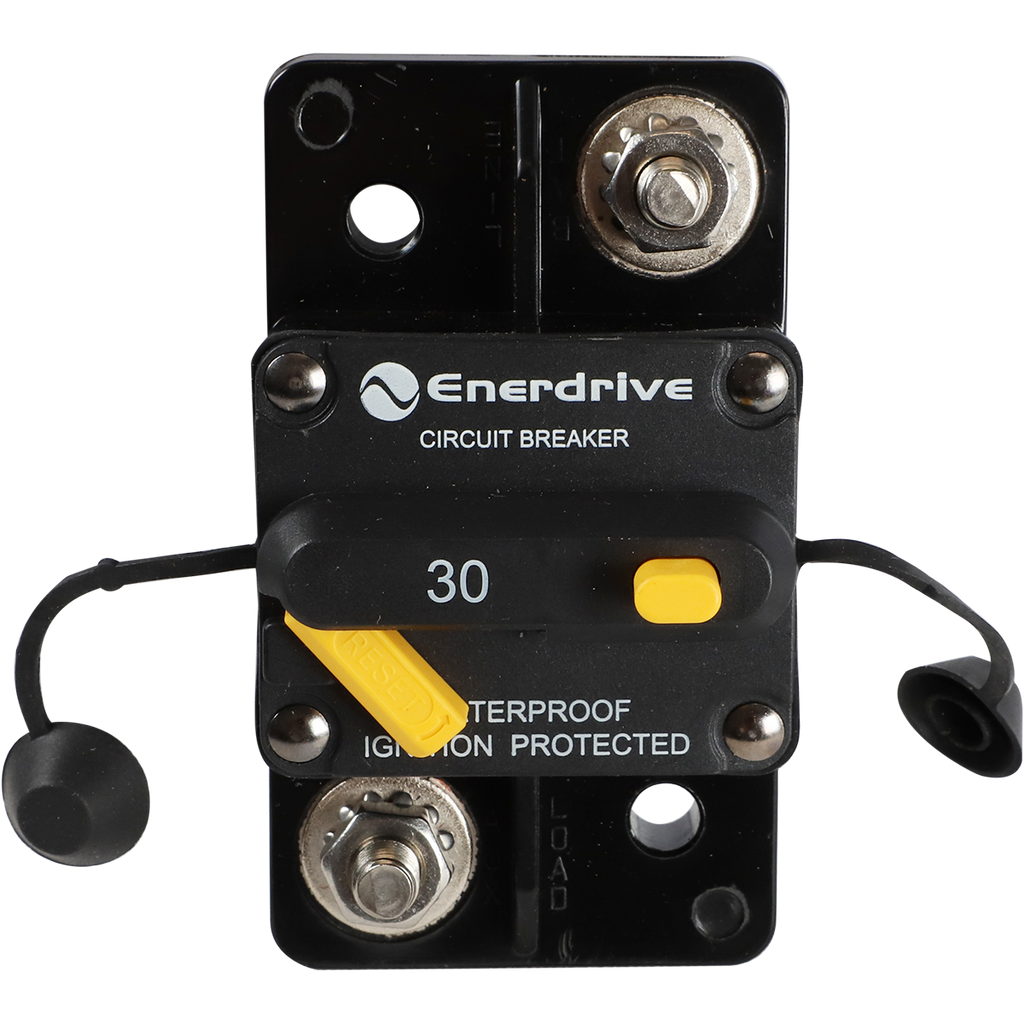

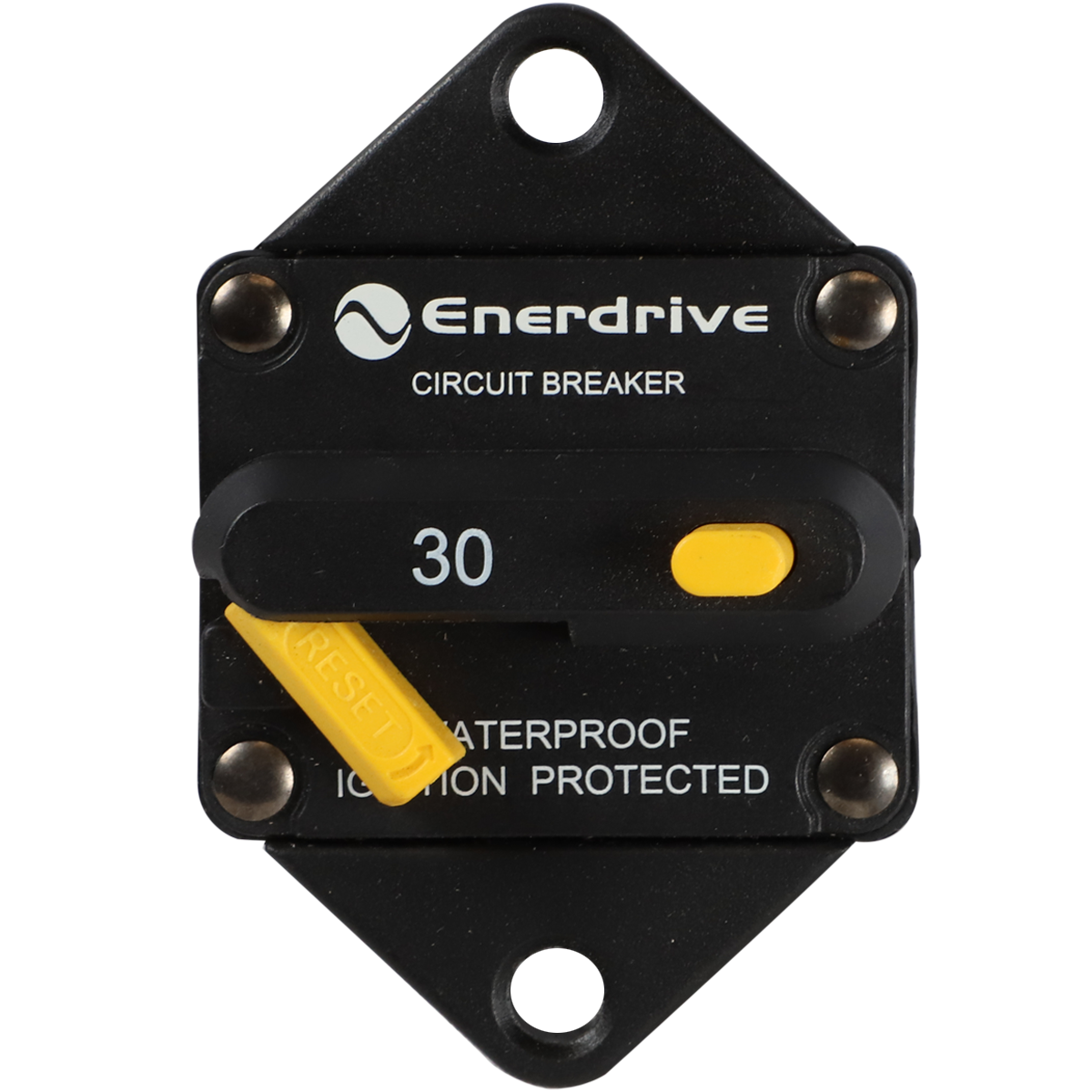

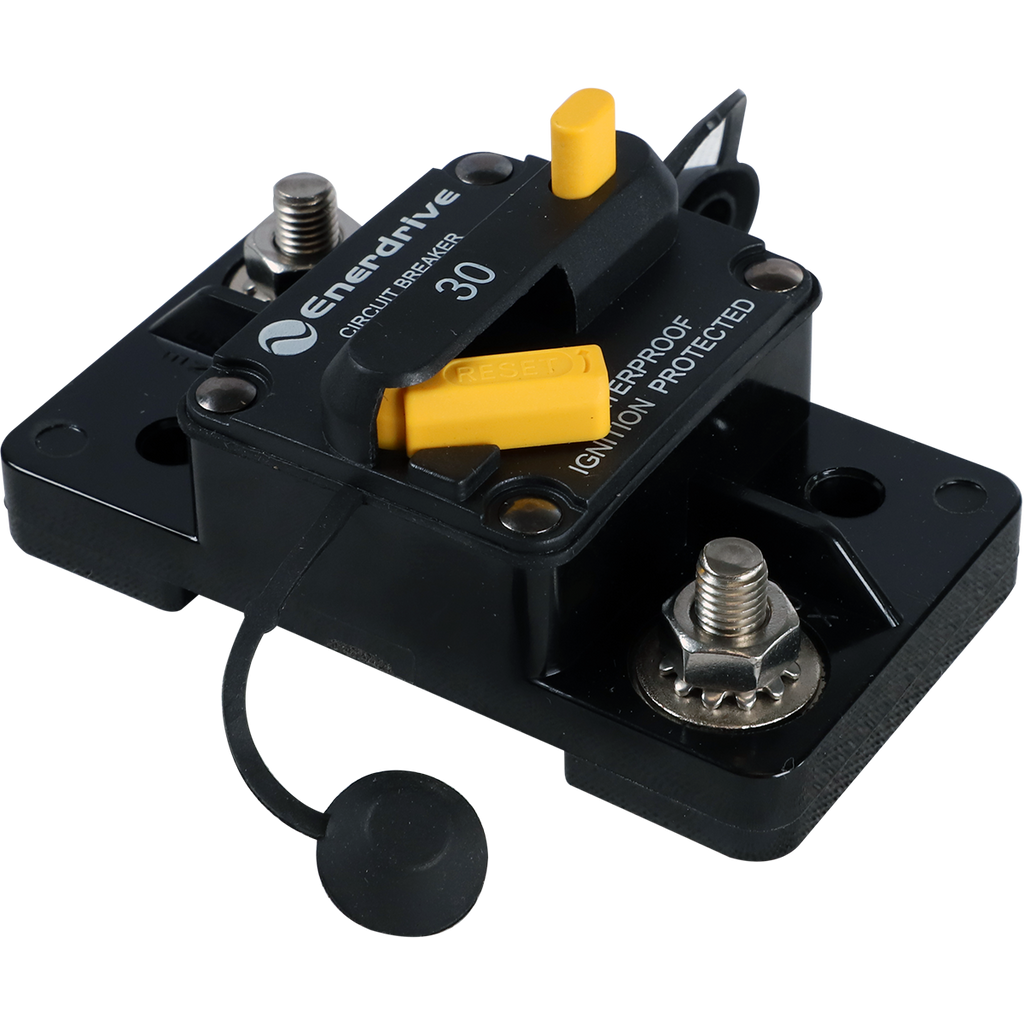

- Visible reset lever shows open condition
- Ignition protected – Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit* “Trip Free” – cannot be held closed after trip
- Do not use as a switch where high inrush currents are expected.
FEATURES
SPECIFICATIONS
EN-RCB25
| Circuit Breakers | |
|---|---|
| Maximum Voltage | 48V DC |
| Circuit Breaker Class | Type III – switchable/manual reset – trip free |
| Circuit Breaker Type | Single Pole Thermally Responsive Bi-metal Blade |
| Interrupt Capacity | 3000A @ 48V |
| Minimum Operating Temp | -32° C |
| Maximum Operating Temp | 82° C |
| Ignition Protected | Meets SAE J553, J1625, J1171, UL1550 |
| Splash & Dust Proof | IP67 |
| UL Rating | Housing is Thermal Plastic UL Rated, 94V0 |
| Terminal Stud | 25-70A - M6 (accepts 1/4″ ring Terminal) 80-250A - M10 (accepts 3/8″ ring Terminal) |
| Terminal Stud Torque | 50 in-lb (5.65 Nm) |
| Weight | 0.23 kg |
Note: Specifications subject to change without notice.

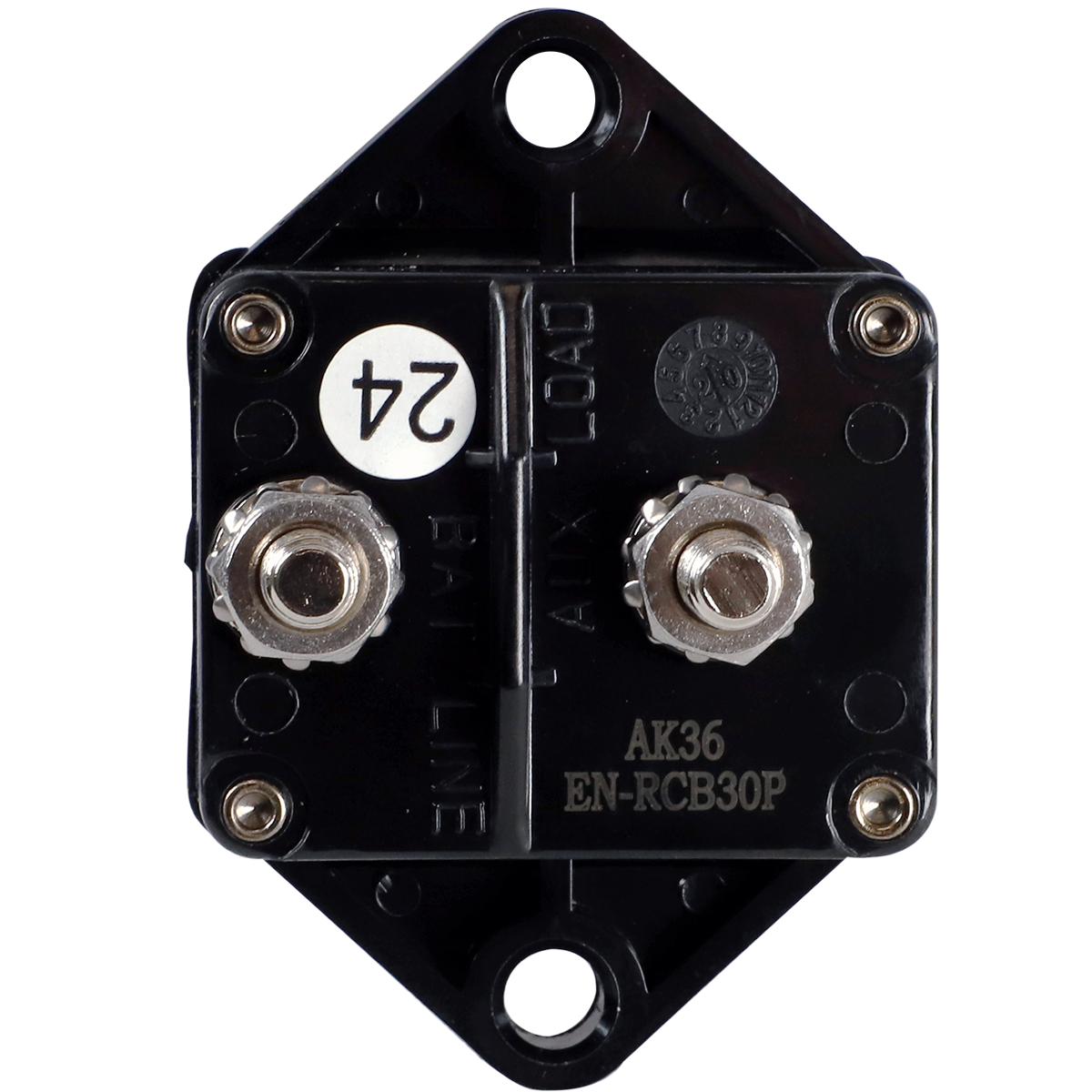

Mount Listings
| Amps | Surface Mount 5/16 Stud | Surface Mount 3/8 Stud | Surface Mount Parallel 5/16 Stud | Surface Mount Parallel 3/8 Stud | Panel Mount |
| 25A | EN-RCB25 | EN-RCB25S | EN-RCB25P | ||
| 30A | EN-RCB30 | EN-RCB30S | EN-RCB30P | ||
| 40A | EN-RCB40 | EN-RCB40S | EN-RCB40P | ||
| 50A | EN-RCB50 | EN-RCB50S | EN-RCB50P | ||
| 60A | EN-RCB60 | EN-RCB60S | EN-RCB60P | ||
| 70A | EN-RCB70 | EN-RCB70S | EN-RCB70P | ||
| 80A | EN-RCB80 | EN-RCB80S | EN-RCB80P | ||
| 100A | EN-RCB100 | EN-RCB100S | |||
| 120A | EN-RCB120 | EN-RCB120S | |||
| 150A | EN-RCB150 | EN-RCB150S | |||
| 200A | EN-RCB200 | EN-RCB200S | |||
| 250A | EN-RCB250 |
