PRODUCT DETAILS
The Balmar ARS-5 provides precise voltage control for Balmar high-output 12-volt alternators and other externally regulated P-type (positive field) alternators, the ARS-5 features user selectable programs for the following battery types: Deep cycle flooded, gel, AGM and spiral wound (Optima) batteries. In addition, the regulator features a universal default (UFP) program that’s safe for most battery types.
FEATURES

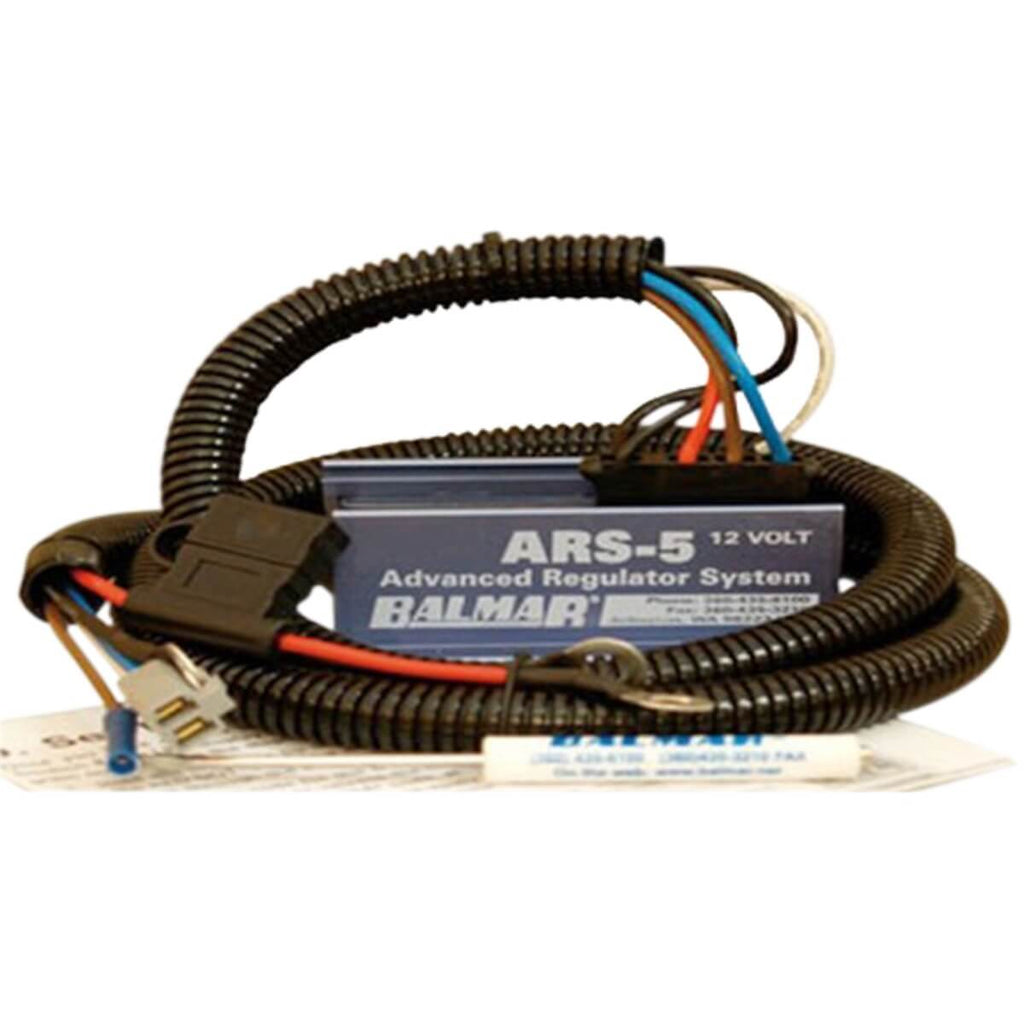

ARS-5 Voltage Regulator
- 5 Selectable Programs for Marine Batteries
- 9 Amp Maximum Field Current
- Appropriate for 6-Series Alternators (150A and below)
- Single Engine, Single Alternator Applications Only
- All the Same Programming Functions as the MC-614
The Balmar ARS-5 Regular has simplified programming and a bright, easy-to-read 3-digit LED display make the ARS-5 the easiest multi-stage regulator to install and use. Selectable presets for five battery programs, including gel, AGM, Optima, deep-cycle and standard flooded, ensure proper time and voltage control.

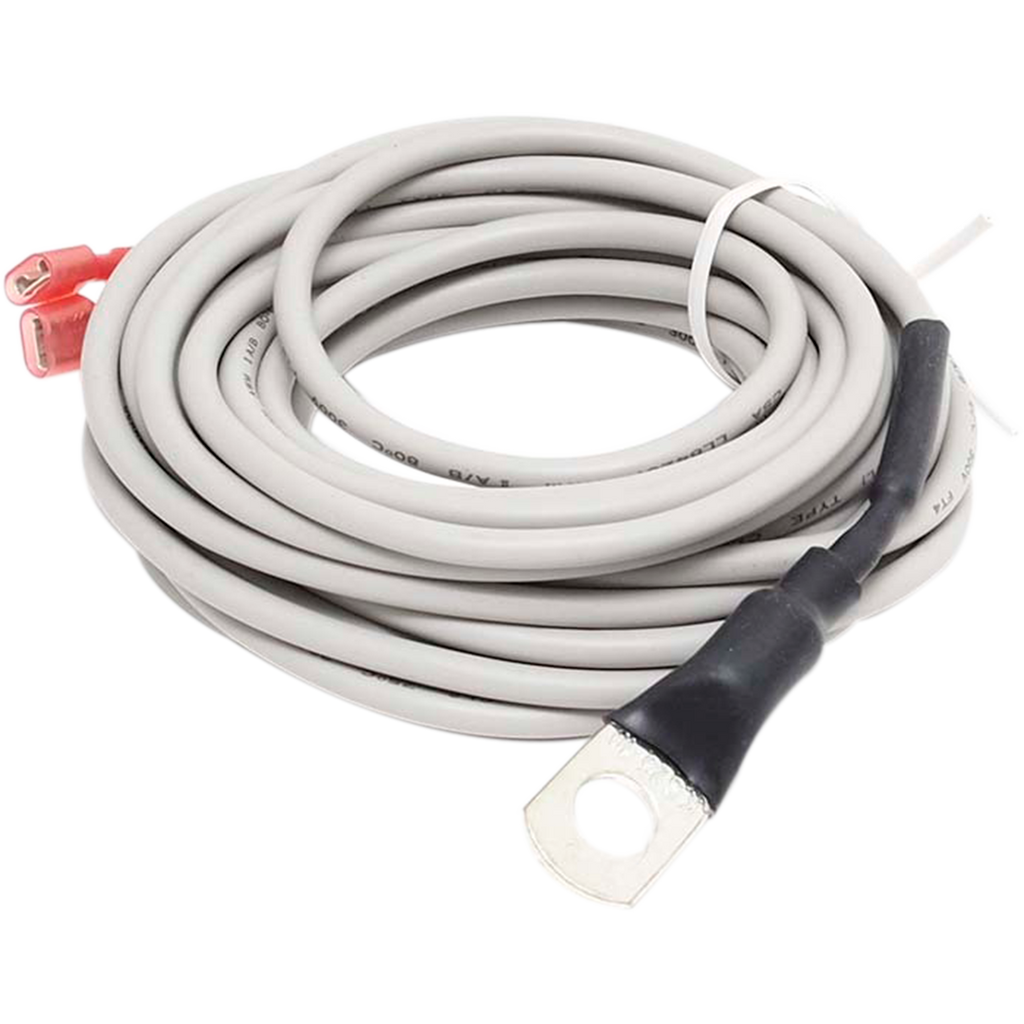

Belt Load Manager eliminates belt wear worries. Single alternator control only. ARS-5-H includes 54″ harness. Alternator and battery temperature sensing with optional temperature sensors. For P-type alternators. One year limited warranty.
- For 12-volt charging systems
SPECIFICATIONS
| SKU | B-ARS-5-H |
|---|---|
| Regulator, ARS Multi-Stage, 12v, w/Harness (P Type) |
